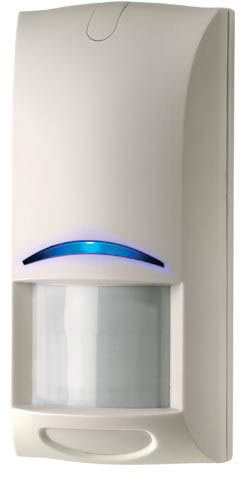

Bosch ISM-BLQ1 Motion Detector

Bosch ISM-BLQ1 - 35 feet by 35 feet area
A passive-infrared detector well suited for challenging installation situations.

The ISM-BLQ1 Quad PIR Detector uses two individual sensors that operate like two PIRs in one. Each sensor processes signals separately. Both must activate to cause an alarm. This increases reliability, because false alarm sources such as noise spikes and small animals are ignored. The ISM-BLQ1 has a broad coverage of 11 m x 11 m (35 ft. x 35 ft) and a flexible mounting height from 2.3 m to 2.7 m (7.5 ft. to 9 ft). No range or height adjustments are required. The sealed optical chamber prevents drafts and insects from affecting the detector.

General Information

  • Product Type: Motion Sensor
  • Brand Name: Bosch
  • Manufacturer: The Bosch Group
  • Product Model: ISM-BLQ1
  • Product Name: ISM-BLQ1 Motion Sensor

Physical Characteristics

  • Color: White

Other

  • Package Contents:
    • ISM-BLQ1 Motion Sensor
    • 1 x Detector
    • 1 x Hardware Pack
    • 1 x Literature Pack
    • ISM-BLQ1 Motion Sensor
    • 1 x Detector
    • 1 x Hardware Pack
    • 1 x Literature Pack
  • Additional Information:
    • 11 m x 11 m (35 ft x 35 ft) broad coverage
    • Dual sensor, quad element design (two separate pyroelectric elements)
    • Flexible mounting height from 2.3 m to 2.7 m (7.5 ft to 9 ft)
    • No range or height adjustments required
    • Installation-friendly two-piece design
    • Easy wiring access with plug-in terminals
    • Eight detection layers including optional look-down zone
    • Draft and insect immunity
    • Cover tamper
    • Optional camera, night light, and sounder modules

Power Description

  • Input Voltage:
    • 10 V DC
    • 14 V DC

Environmental Conditions

  • Humidity: 0 to 85% Non-condensing Relative Humidity
  • Temperature: -20.2°F (-29°C) to 120.2°F (49°C) Operating

Full specifications (PDF)



The Bosch ISM-BLQ1 is also known as BOS-ISMBLQ1 or ISMBLQ1 .
