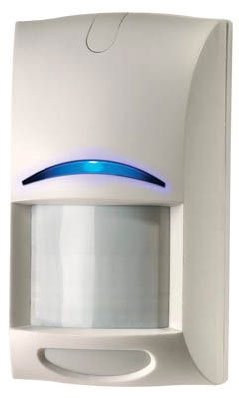

Bosch ISM-BLP1-P Motion Detector

Bosch ISM-BLP1 - 35 feet by 35 feet area 30lb Pet Friendly
Produce sharply-focused images throughout the field of view to provide superior response to intruders.

The ISM-BLP1 detector uses a high-density (77 zone) Fresnel lens designed to produce sharply-focused images throughout the field of view to provide superior response to intruders. First Step Processing (FSP) almost instantly responds to human targets without producing false alarms from other sources. FSP adjusts the detector's sensitivity based on signal amplitude, polarity, slope, and timing. This eliminates the need for the installer to select the sensitivity level. The ISM-BLP1 also has an easy wiring access with plug-in terminals.

General Information

  • Product Type: Motion Sensor
  • Brand Name: Bosch
  • Manufacturer: The Bosch Group
  • Product Model: ISM-BLP1-P
  • Product Name: ISM-BLP1-P Motion Sensor

Technical Information

  • Operating Range: 90" to 108" - Height

Physical Characteristics

  • Color: White

Other

  • Package Contents:
    • ISM-BLP1-P Motion Sensor
    • 1 x Detector
    • 1 x Hardware Pack
    • 1 x Literature Pack
    • ISM-BLP1-P Motion Sensor
    • 1 x Detector
    • 1 x Hardware Pack
    • 1 x Literature Pack
  • Additional Information:
    • 11 m x 11 m (35 ft x 35 ft) broad coverage
    • Pet friendly
    • First step Processing (FSP)
    • No range or height adjustments required
    • Installation-friendly two-piece design
    • Easy wiring access with plug-in terminals
    • Eight detection layers including optional look-down zone
    • Draft and insect immunity
    • Temperature compensation

Power Description

  • Input Voltage:
    • 10 V DC
    • 14 V DC

Environmental Conditions

  • Humidity: 0 to 85% Non-condensing Relative Humidity
  • Temperature: -20.2°F (-29°C) to 120.2°F (49°C) Operating

Full specifications (PDF)



The Bosch ISM-BLP1-P is also known as BOS-ISMBLP1P or ISMBLP1P .
