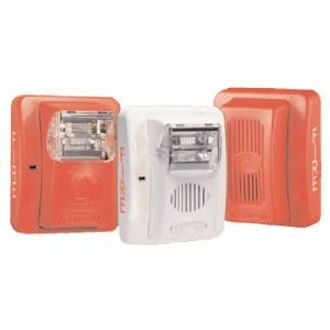

The Commander2 Series is a low profile strobe, horn and horn/strobe combination that offers dependable audible and audible/visual alarms and the absolute lowest current available.
The GE Series is available in fixed candela options of 15/75 and 177. The Commander2 Series horn offers a continuous or synchable temporal 3 in 2400Hz and mechanical and, chime as well as a whoop tone. All tones are easy for the professional to change in the field by using switches.
The Commander2 Series is shipped with the standard 4" mounting plate which incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing. The Commander2 Series also features the patented Checkmate® Instant Voltage Verification feature which allows the installer to check the voltage drop draw and match it to the blueprint.
The GE Series appliances are ANSI/UL 464, ANSI/UL 1971, ANSI/UL 1638, CAN/ULC S525 (24 VDC only) and/or CAN/ULC S526 (24 VDC only), listed for use with fire protective systems and are warranted for three years from date of purchase.
Standard Features
Nominal voltage 24 VDC for horn, strobe and horn/strobe
Nominal voltage 12 VDC for horn
Fixed candela models of 15/75 and 177
Unit Dimensions: 5" (12.7 cm) high x 4.5" (11.43 cm) wide x 2.5" (6.35 cm) deep
Super-Slide® Bracket, Ease of Supervision Testing
Checkmate® Instant Voltage Verification
Prewire entire system, install mounting bracket, then install signals
Documented lower installation and operating costs
Input terminals 12 to 18 AWG
Switch selection for high or low dBA
Switch for 2400 Hz, mechanical, chime and tones
Switch for continuous or temporal 3 (not available on whoop tone)
Synchronize strobe and/or horn with Gentex AVSM Control Module
Silence audible while visual appliance will remain flashing
Tamperproof re-entrant style grill and locking screw (optional use)
Surface mount with the GSB (Gentex Surface Mount Box)
The Bosch GEC24-15/75WR Products is also known as
BOS-GEC241575WR
