Bosch FVTXA4C1M Products

Bosch - 4 Channel Audio Transmitter + Bi-directional Contact Closure
  • 24-bit 96kHz Digital Transmission
  • One Bi-directional Contact Closure
  • 20Hz - 18kHz Audio Bandwidth
  • 600 Ohms Audio Input Impedance
  • No In-field electrical or optical adjustments
  • Bi-color (Red/Green) LED status indicators confirm equipment operating status
  • Transmits Balanced Line-Level Audio up to +6dBm
  • Hot-swappable rack modules
  • Interchangeable between stand-alone or rack mount use - ComFit
  • Distances up to 30 miles (48 km) without repeaters
  • Automatic resettable fuses on all power lines
  • Lifetime Warranty
Read More

Need a different version? See all Bosch Parts Accessories

$2,167.66
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Bosch FVTXA4C1M Products
Bosch FVTXA4C1M Products
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch FVTXA4C1M Products Overview

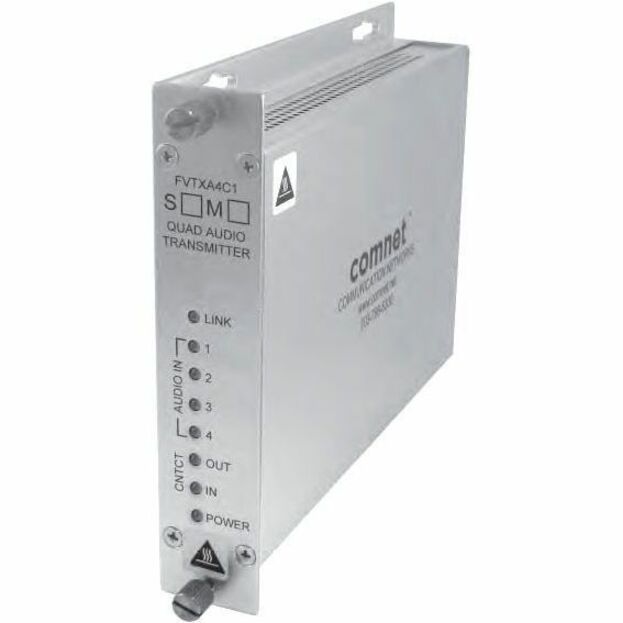

The ComNet™ FVT/FVRXA4C1 series audio multiplexer provides the transmission of four audio signals and one bi-directional contact closure over one multimode or single mode optical fiber. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators confirm equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

Technical Information
Connectivity Technology:
Wired
Number of Input Devices Supported:
4
Number of Output Devices Supported:
1
Maximum Operating Distance:
9842.52 ft
Media & Performance
Media Type Supported:
Optical Fiber
Power Description
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
Transmitter Height:
1.10"
Transmitter Width:
5.31"
Transmitter Depth:
6.10"
Form Factor:
  • Surface-mountable
  • Rack-mountable
  • Wall Mountable
Miscellaneous
Package Contents:
  • FVTXA4C1M Audio Extender Transmitter
  • AC Adapter
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0845770002379
UPC: 845770002379
EAN: 0845770002379
UNSPSC: 43222619
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch FVTXA4C1M Products is also known as CCN-FVTXA4C1M
