The ComNet FVT/FVR(X)MI[/M] features an HDMI™ fiber link for uncompressed highresolution bi-directional communication with full HDCP copyright protection, EDID and CEC connection functionality. The FVT/FVR(X)MI[/M] transmits pixel-for-pixel images and full 24-bit scan rate with no contouring or bit reduction. Fully compatible with HDMI™ compliant sources and monitors, supporting all possible horizontal and vertical sync configurations. The FVT/FVR(X)MI[/M] transmits up to 8 channels of uncompressed audio at sample sizes of 16-bit, 20-bit and 24-bit, with sampling rates of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz. This series also supports any IEC 61937-compliant compressed audio stream, such as Dolby Digital and DTS, and up to 8 channels of one-bit DSD audio (as used on SACD/Super Audio CDs), and at rates up to four times that of Super Audio CD, and lossless compressed audio streams such as Dolby True HD and DTS-HD Master Audio.
FEATURES
Supports up to 1080p60
Scalable to HDMI Version 1.3a - 16 bit color
Bi-directional communication for HDCP copyright, EDID and CEC functionality
HDCP encoding remains intact and unmodified
Fully uncompressed, 100% transparent, No Frame Dropping
Mounting Options:

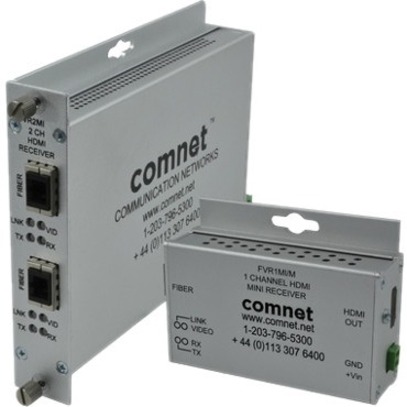

Small stand-alone package (FVT/FVR1MI/M)
Optional ComNet model C1 rack
1 RU racking system available
Power Supply Included
Locking cable screw prevents the connectors from accidental disconnection
Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
LED status indicators confirm operating status
Hot-Swappable Modules
ComFit Models are interchangeable between stand-alone or rack mount use
Small size units are designed as stand-alone for installations where space is at a premium.
May be DIN-rail mounted by the addition of ComNet model DINBKT1 or DINBKT4 adaptor plate.
The Bosch FVR1MI Products is also known as
CCN-FVR1MI
