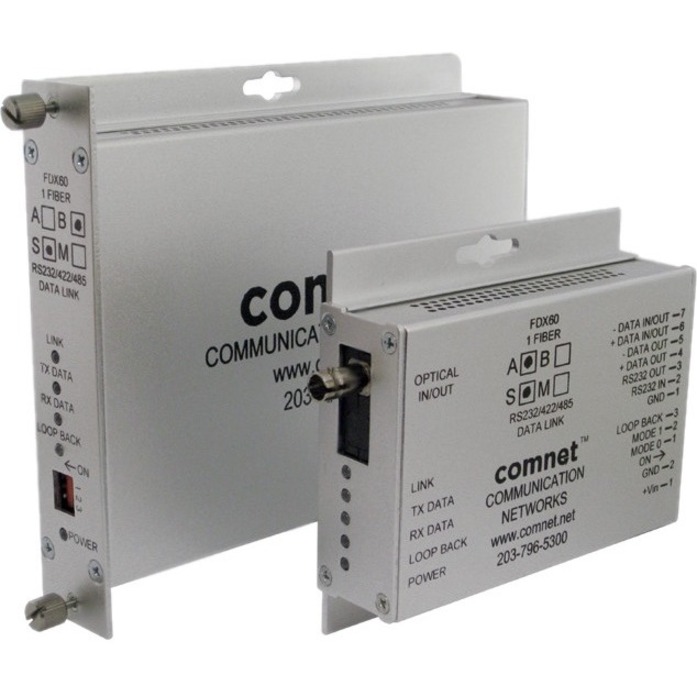

The ComNet FDX60(M,S)[-M] data transceivers provide point-to-point transmission of simplex or duplex EIA RS232/RS422/RS485 (2W/4W) data signals over one or two optical fibers. The transceivers are transparent to data encoding allowing for broad-range compatibility. Models within this series are available for use with multimode or single mode optical fiber.
Features for FDX60 Series
Robust design assures extremely high reliability in unconditioned out-of-plant/roadside environments
NTCIP compatible
Wide optical dynamic range: optical attenuators are never required
Status indicating LEDs provide rapid indication of critical operating parameters.
Meets EIA RS232C/D and RS422/RS485 (2 or 4-wire) specifications
Fiberlink Fiber Link Tester
Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
Standard ComFit models are hot-swappable.
Lifetime Warranty
ComFit standard form factor is designed for wall, surface, rack, or DIN rail mount installations (using optional card cage or DIN mounting bracket).
Compact form-factor saves space in those installations where space may be at a premium.
The Datalogic 95B080670 is an optical encoder designed for automated identification and profiling applications across warehousing, logistics, and manufacturing. It reads barcode data and analyzes product dimensions to enable accurate tracking, billing, and quality control processes in high-speed automation systems.
What are the key specifications of the Datalogic 95B080670?
This encoder features a 58mm diameter hollow 14mm shaft with 1000 Pulse Per Revolution (PPR) resolution, supporting 5-30 Vdc power input and M12 connector connectivity. It's designed for incremental position tracking in the AMT/AST/ENC product line with extended line capabilities for demanding industrial environments.
What type of connector does the Datalogic 95B080670 use?
The Datalogic 95B080670 uses an M12 connector, which provides a robust, sealed connection ideal for warehouse and logistics environments where moisture and contaminants may be present. This industrial-grade connector ensures reliable signal transmission in harsh operational conditions.
What is the pulse resolution of the Datalogic 95B080670 Encoder?
The encoder delivers 1000 Pulse Per Revolution (PPR) resolution, enabling precise position detection and speed measurement for automated identification systems. This high-resolution output is suitable for applications requiring accurate dimension scanning and product profiling in fast-moving conveyor and sorting systems.
What power requirements does the Datalogic 95B080670 have?
The Datalogic 95B080670 operates on 5-30 Vdc, providing flexibility for integration into various industrial automation systems and control platforms. This wide voltage range allows compatibility with standard PLC and motion control systems commonly used in warehouse automation.
Where can I purchase the Datalogic 95B080670 Encoder?
We offer the Datalogic 95B080670 Encoder as part of our comprehensive AIDC solutions portfolio. Contact us today or visit barcodesinc.com to check availability, pricing, and to discuss integration support for your warehouse automation or logistics operations.
The Bosch FDX60M1B Products is also known as
CCN-FDX60M1B
