Total Number of Ports:
1
Bosch FDX4DM1B Products
Part Number:
FDX4DM1B
Model:
Parts
Bosch Accessory Model Overview
Products and parts from Bosch.
Bosch FDX4DM1B Products Overview

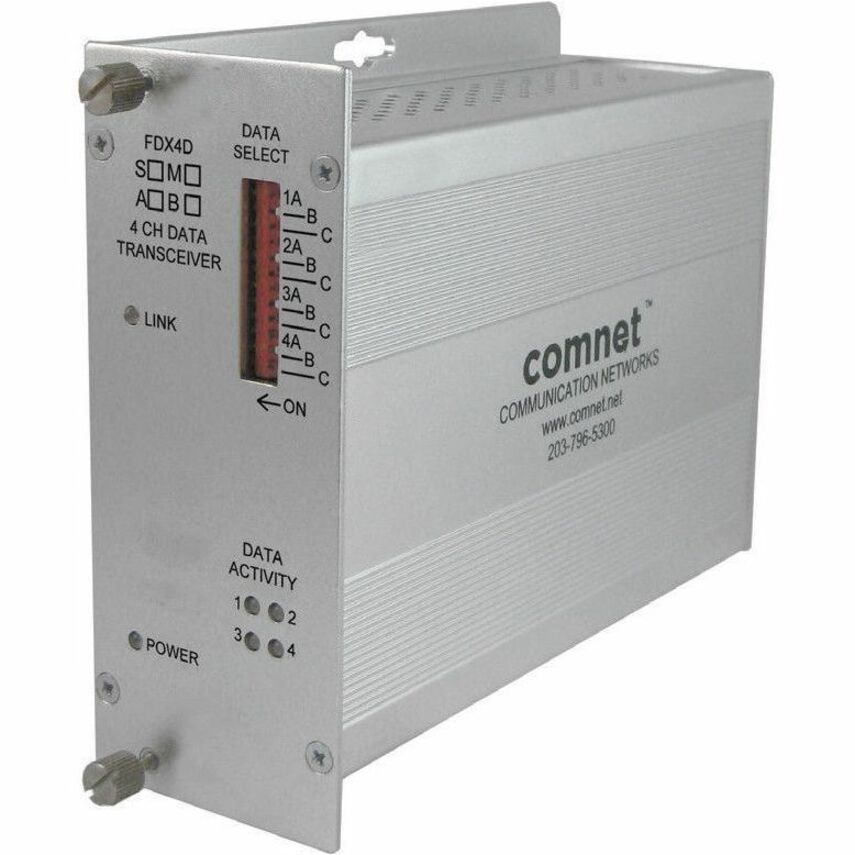

The ComNet™ FDX4D(M)(S)1 Series data transceiver series provide transmission of four bi-directional data channels over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. The data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485 with tri-state support. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
Interfaces/Ports
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
- 1310 nm
- 1550 nm
Maximum Distance Supported:
3 km
Fiber Optic Cable Core/Cladding Specification:
62.5/125 µm
Power Description
Power Source:
Power Supply
Physical Characteristics
Form Factor:
- Rack-mountable
- Wall Mountable
- Surface-mountable
- DIN Rail Mountable
Height:
2.2"
Width:
5.3"
Depth:
6.1"
Miscellaneous
Application/Usage:
Data
Item Numbers
GTIN:
0195509402407
UPC:
195509402407
EAN:
0195509402407
UNSPSC:
43201553
