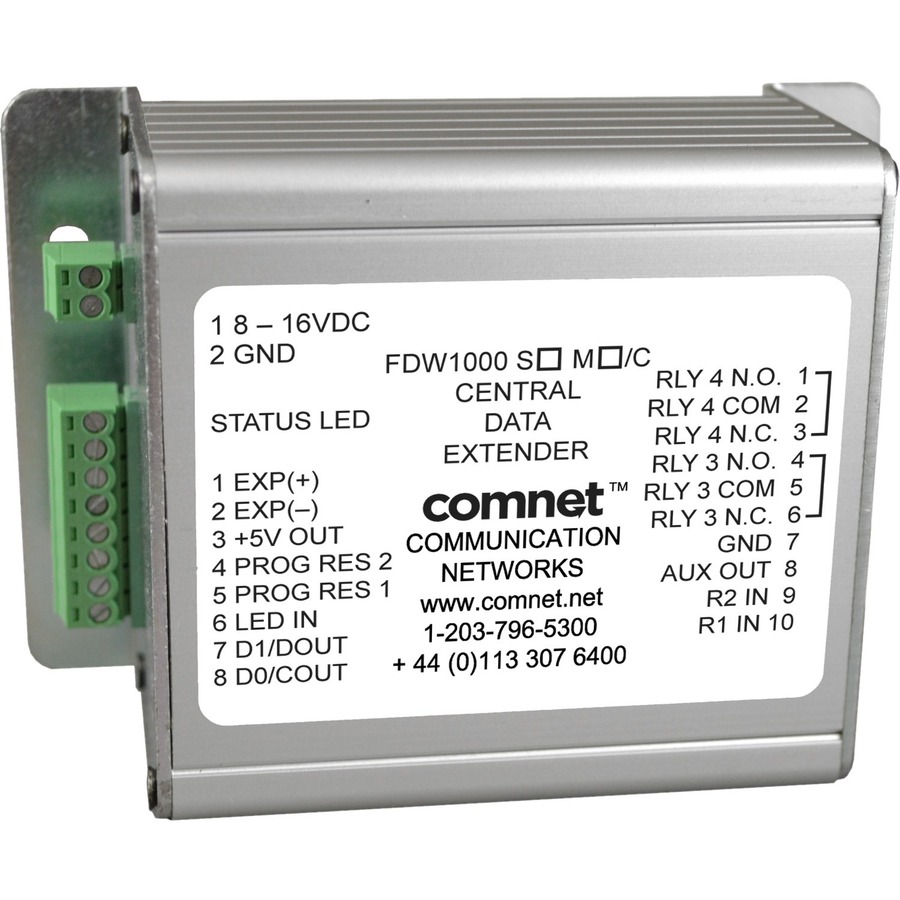

The ComNet FDW1000 data extenders provide optical connectivity between one card reader and its associated door or gate locking hardware, to any Wiegand, MagStripe, or F/2F-based control panel. The connection is completely supervised and secure, and a pair of these units will support a single locking gate or door and its associated reader using two multimode or singlemode optical fibers. When used with the ComNet EXP-100 Expansion Module, up to 7 gates or doors and readers may be integrated onto the same network. A service mode provides easy and fast set-up and configuration when the EXP-100 is used, and user selection of the reader formats via DIP-switch setting is included. An auxiliary I/O (input/output) interface is available for determining door, gate, and control panel status and signaling, and a relay interface provides the door strike or gate activation functions. These extenders are designed for long-term, reliable operation in harsh industrial environments, and a fault-specific LED indicator is provided for rapidly ascertaining the operating status of the extender and the link. Packaged in a rugged aluminum housing, the FDW1000 is designed for shelf or surface mounting. The FDW1000 series are supplied as a remote unit for door or gate locations, and a central unit for control panel installation.
Features for FDW1000 Series
Status indicating LEDs provide rapid indication of critical operating parameters.
Wiegand, or F/2F-based reader formats/control panel-compatible.
Made in the USA
Completely supervised and secure operation
Service mode provides simple and fast system set-up and configuration
DIP-switch selection of the desired reader format
Auxiliary I/O (input/output) interface is available for ascertaining door, and control panel status and signaling.
Relay interface provides door strike or gate activation functions.
Voltage transient/surge protected.
Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
Compact form-factor saves space in those installations where space may be at a premium.
The Datalogic 95B080400 is an optical encoder designed for automated identification and measurement applications in industrial settings. It reads barcode data, analyzes images, and profiles items to support critical processes—from pharmaceutical medication identification ensuring patient safety to parcel dimension scanning for accurate billing. This encoder is essential infrastructure in warehouse automation, logistics, and manufacturing environments where reliable product identification drives operational efficiency.
What are the key specifications of the Datalogic 95B080400 Encoder?
The Datalogic 95B080400 features 5000 Pulse Per Revolution (PPR) resolution with a 58mm diameter and solid 10mm shaft, making it suitable for high-precision motion control applications. It operates on 5-30 Vdc power and connects via an M23 connector for industrial-grade reliability. This incremental encoder is part of Datalogic's AMT/AST/ENC extended line, designed to meet demanding warehouse and logistics automation requirements.
Is the Datalogic 95B080400 compatible with existing automation systems?
Yes, the Datalogic 95B080400 integrates seamlessly into existing automation infrastructure through its standard M23 connector and broad voltage range (5-30 Vdc), making it compatible with most industrial control systems and PLCs. The incremental encoder format is widely supported across warehouse management systems and logistics automation platforms. Contact us today to discuss integration with your specific system configuration.
What environments can the Datalogic 95B080400 Encoder operate in?
The Datalogic 95B080400 is engineered for demanding industrial environments typical in warehouses, distribution centers, and manufacturing facilities. Its robust construction with a solid 10mm shaft and industrial M23 connector provides durability in high-vibration and temperature-variable settings. We offer this encoder as part of our comprehensive AIDC solutions designed to withstand the rigors of 24/7 logistics operations.
How does the 5000 PPR resolution benefit warehouse automation?
The 5000 Pulse Per Revolution resolution on the Datalogic 95B080400 delivers precise position feedback critical for accurate parcel dimensioning, conveyor speed control, and inventory positioning in automated warehouse systems. Higher PPR resolution enables finer motion control and more accurate measurement data, reducing billing errors and improving operational accuracy in high-speed logistics environments. This precision is essential for modern fulfillment centers managing thousands of items daily.
Where can I purchase the Datalogic 95B080400 Encoder?
We offer the Datalogic 95B080400 Encoder as part of our comprehensive AIDC product portfolio at Barcodes Inc. Our team specializes in barcode scanners, label printers, mobile computers, and RFID solutions for warehouse and logistics operations. Visit barcodesinc.com or contact us today to order this encoder and discuss how it fits into your automation strategy.
The Bosch FDW1000M/C Products is also known as
CCN-FDW1000MC
