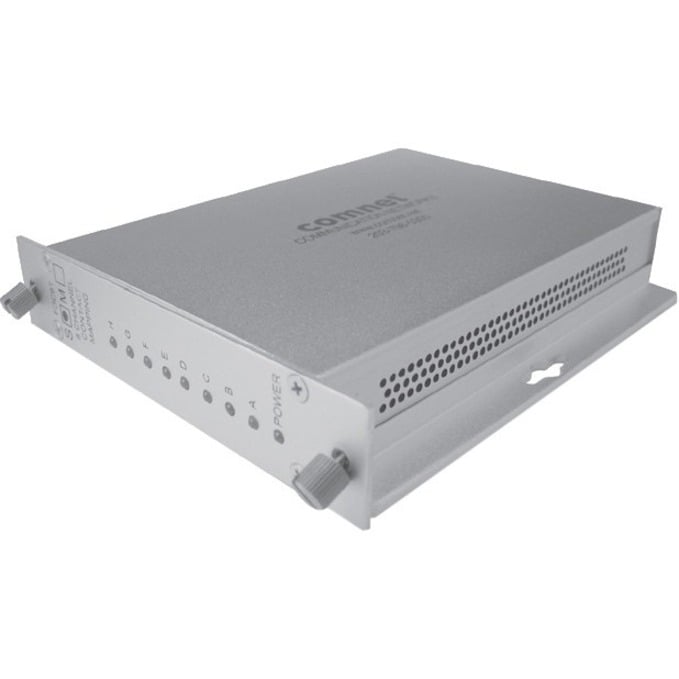

The ComNet™ FDC8 Series contact closure transmitter and receiver provides transmission of up to eight independent contact closures over one RS232 link or optical fiber. Microprocessor-based logic sends the contact information in packets that are ordered and encoded, ensuring extremely robust transmission. Packets that are garbled, packets out of sequence, and transmission bit errors will not cause random changes of state on the contact relays. Also, the mechanical latching relays maintain their state even when the unit loses power. Each module incorporates power and individual status indicating LEDs for monitoring confirmation of contact closure of each of the eight channels. These units are interchangeable between stand-alone or card mount configurations.
What is the pulse resolution of the Datalogic 95B080340 Encoder?
The Datalogic 95B080340 Encoder delivers 10,000 pulses per revolution (PPR) resolution, making it ideal for applications requiring precise incremental position feedback and motion control. This high-resolution output ensures accurate tracking in automation systems, conveyor controls, and industrial machinery where position accuracy is critical.
What are the power supply requirements for this optical encoder?
The Datalogic 95B080340 operates on a 5-30 Vdc power supply, providing flexibility for integration into various industrial control systems and voltage environments. This wide input range makes it compatible with both standard 12V and 24V industrial power systems commonly found in warehouse and logistics automation.
What shaft specifications does the Datalogic 95B080340 have?
The encoder features a solid 10mm shaft, which is a standard industrial size compatible with most motor couplings and mechanical drive systems. The 58mm diameter housing with this shaft configuration makes it suitable for direct mounting on motors and rotating equipment in material handling and identification systems.
How is the Datalogic 95B080340 connected to control systems?
The encoder includes a 1.5-meter cable connector for straightforward integration into your automation infrastructure. This cable length provides adequate reach for typical mounting scenarios while the connector ensures reliable signal transmission to your control systems and PLCs.
What applications use encoders like the Datalogic 95B080340?
Optical encoders are essential components in identification and automation systems that read barcodes, analyze images, and profile items in warehouses, logistics centers, and manufacturing facilities. From tracking package dimensions for accurate billing to controlling conveyor speed and position in sorting systems, encoders enable the precise motion control that keeps supply chain operations running efficiently.
Is the Datalogic 95B080340 also known by another model number?
Yes, the Datalogic 95B080340 is also referred to as the ENC58-S10-10000-C15, which designates it as an incremental encoder (ENC) with a 58mm diameter, solid 10mm shaft (S10), 10,000 PPR resolution, and 15-meter cable connector specification. Both model numbers identify the same optical encoder from Datalogic's AMT/AST/ENC extended line product family.
The Bosch FDC8NLTS1 Products is also known as
CCN-FDC8NLTS1
