Total Number of Ports:
1
Number of ST Ports:
1
Bosch FDC10M1A Products
Part Number:
FDC10M1A
Model:
Parts
Bosch Accessory Model Overview
Products and parts from Bosch.
Bosch FDC10M1A Products Overview

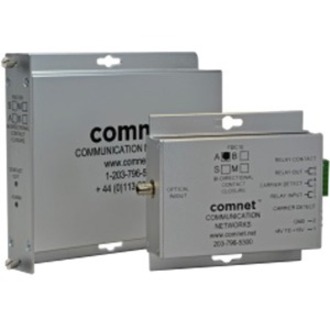

The ComNet™ FDC10 Series bi-directional contact closure transceiver provides bi-directional transmission of contact closure over one multimode or single mode optical fiber. The transceiver has a contact input and a 0.5 amp contact output. The bi-directional contact closure module has two relay outputs and one relay input. One relay output follows the "relay input" at the remote end. When the remote "relay input" is shorted, the local relay output is closed and vice-versa. The second relay output is closed when "carrier" is detected from the remote end, this indicates that the optical fiber is connected and that the remote end has power and is operating.
Interfaces/Ports
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
- 1310 nm
- 1550 nm
Maximum Distance Supported:
16 km
Fiber Optic Cable Core/Cladding Specification:
62.5/125 µm
Power Description
Power Source:
Power Supply
Power Consumption:
2 W
Physical Characteristics
Form Factor:
Surface-mountable
Height:
3.7"
Width:
4"
Depth:
1"
Miscellaneous
Package Contents:
- Bi-Directional Contact Closure Transceiver
- DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz
Environmentally Friendly:
Yes
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0845770000849
UPC:
845770000849
EAN:
0845770000849
UNSPSC:
43201553
