Bosch F220-PTH Fire & Intrusion Detector

Bosch FCP-350-PTH Accessory A newer version of this item is available.
It is replaced by the Bosch FCP-350-PTH Accessory.

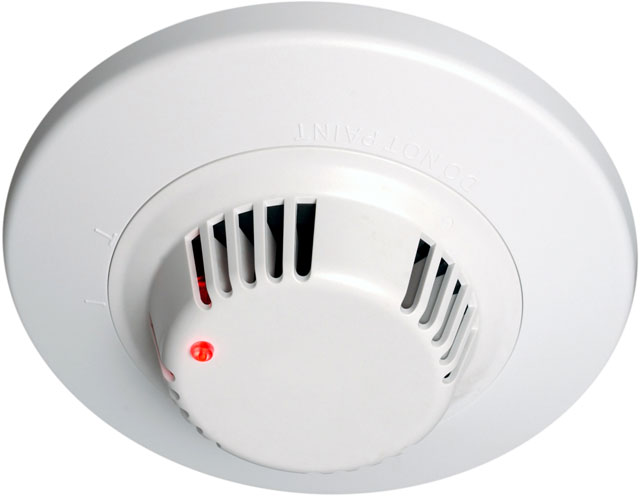

Bosch F220-P - Photoelectric Smoke Detector with Heat Detector. Base not included, see Accessories.
Bosch F220-P Fire & Intrusion Detector Model Overview
The Bosch F220-P Photoelectric Smoke Detector uses the light scatter technique using a pulsed infrared source operating with a gated high-speed photodiode infrared sensor and a symmetrical optical chamber that allows uniform 360-degree smoke entry while increasing immunity to external light. Head only; needs base. The F220-P detectors are UL Listed, open-area Photoelectric Smoke Detectors designed for use with commercial fire protective signaling systems and household fire warning systems (refer to NFPA 72, The National Fire Alarm Code). By utilizing low-current electronic circuitry, the F220-P detectors can be connected to a wide range of power source circuits.
Bosch F220-PTH Fire & Intrusion Detector Overview
The F220 Photoelectric Smoke Detectors are UL Listed, open-area photoelectric smoke detectors. Use them with commercial fire protective signaling systems and household fire warning systems (see NFPA 72, the National Fire Alarm Code). These smoke detectors scatter light using a pulsed infrared source operating with a gated, high-speed, photodiode infrared sensor. The symmetry of the optical chamber allows 360° uniform smoke entry, but minimizes external light entry. The detectors use low current electronic circuitry, so they can connect to 12 VDC nominal or 24 VDC nominal power source circuits.
Technical Information
Sensing Technology:
Photoelectric
Detectable Medium:
Fire
Detectable Gas:
Carbon Monoxide
Controls/Indicators
Status Indicators:
LED
Power Description
Power Source:
Battery
Input Voltage:
  • 24 V DC
  • 12 V DC
Physical Characteristics
Product Color:
White
Form Factor:
Ceiling Mount
Height:
2.3"
Diameter:
6.8"
Miscellaneous
Package Contents:
  • F220 Smoke Detector
  • Dust Cover
Additional Information:
Diameter:- 6.75 in.
Item Numbers
GTIN: 0782695107751
UPC: 782695107751
EAN: 0782695107751
UNSPSC: 46191501
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch F220-PTH Fire & Intrusion Detector is also known as BOS-F220PTH
