Bosch EVOLVE50-TB Accessory

Bosch - Column speaker array, pole, black - MUST ORDER WITH EVOLVE50-SB-US
$747.71
In Stock
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch EVOLVE50-TB Accessory Overview
  • EV QuickSmart Mobile application: quickly and wirelessly configure, control, and monitor up to six EVOLVE 50 systems simultaneously, and receive immediate notification during critical performance conditions. Bluetooth® connectivity is available in select countries.
  • High-quality Bluetooth® audio streaming for background music or musical accompaniment. Bluetooth® connectivity is available in select countries.
  • Ultra-wide 120° horizontal coverage via customdesigned waveguides and array-formed 40° asymmetrical vertical coverage means all acoustical energy is directed towards both sitting and standing audiences.
  • QuickSmartDSP provides best-in-class processing via EV's signature single-knob user interface with LCD
  • Ideal for portable applications. Light weight and intuitive assembly via the magnet assisted sub pole make a quality performance easier than ever.

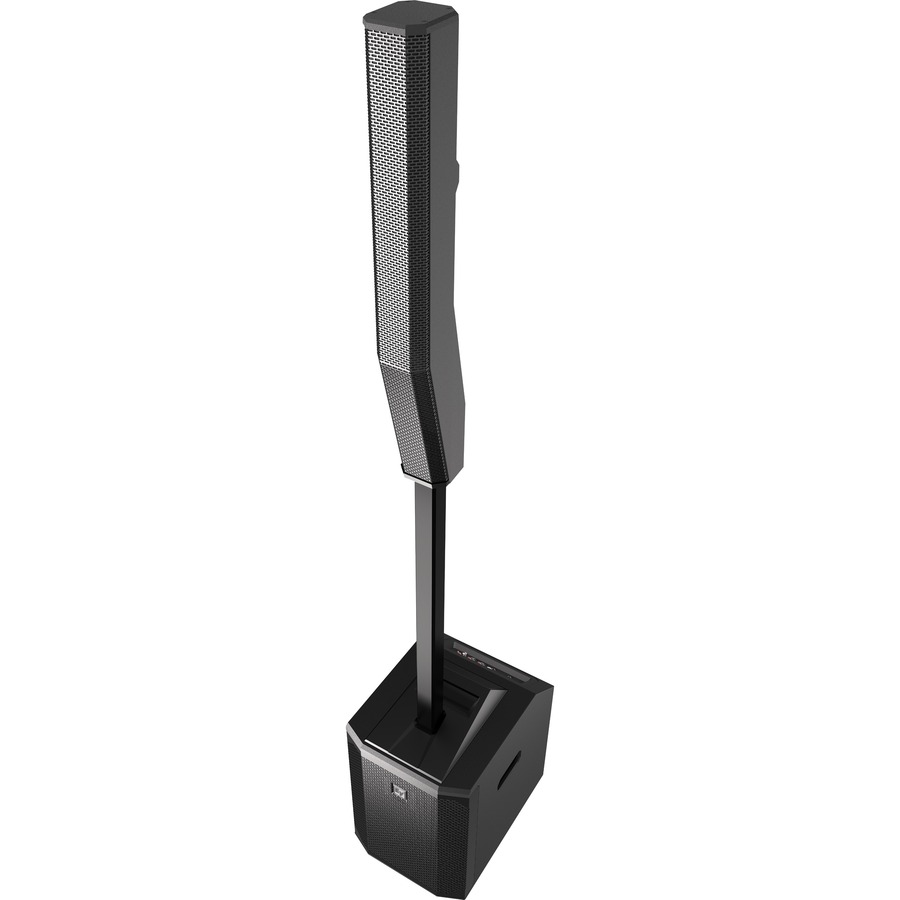

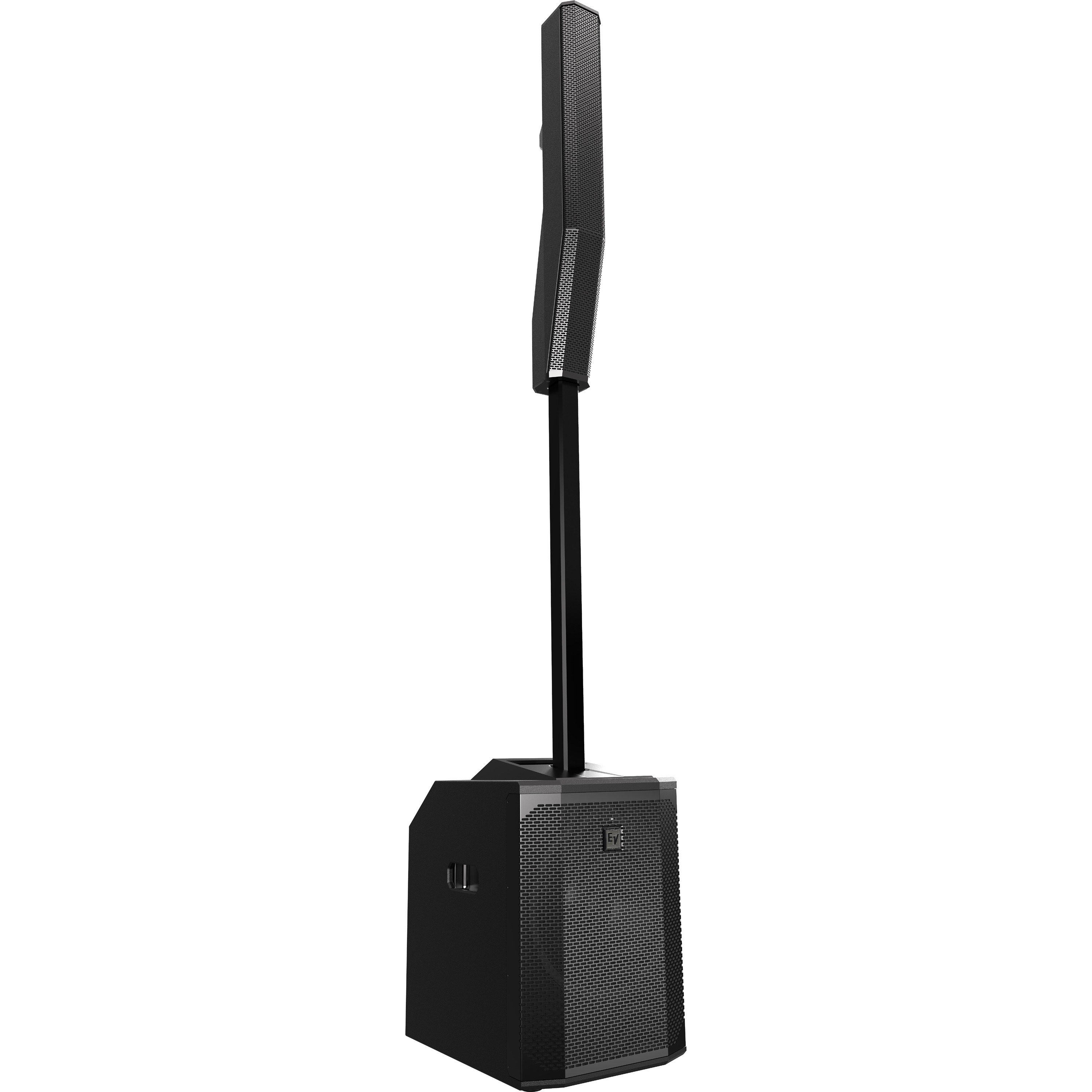

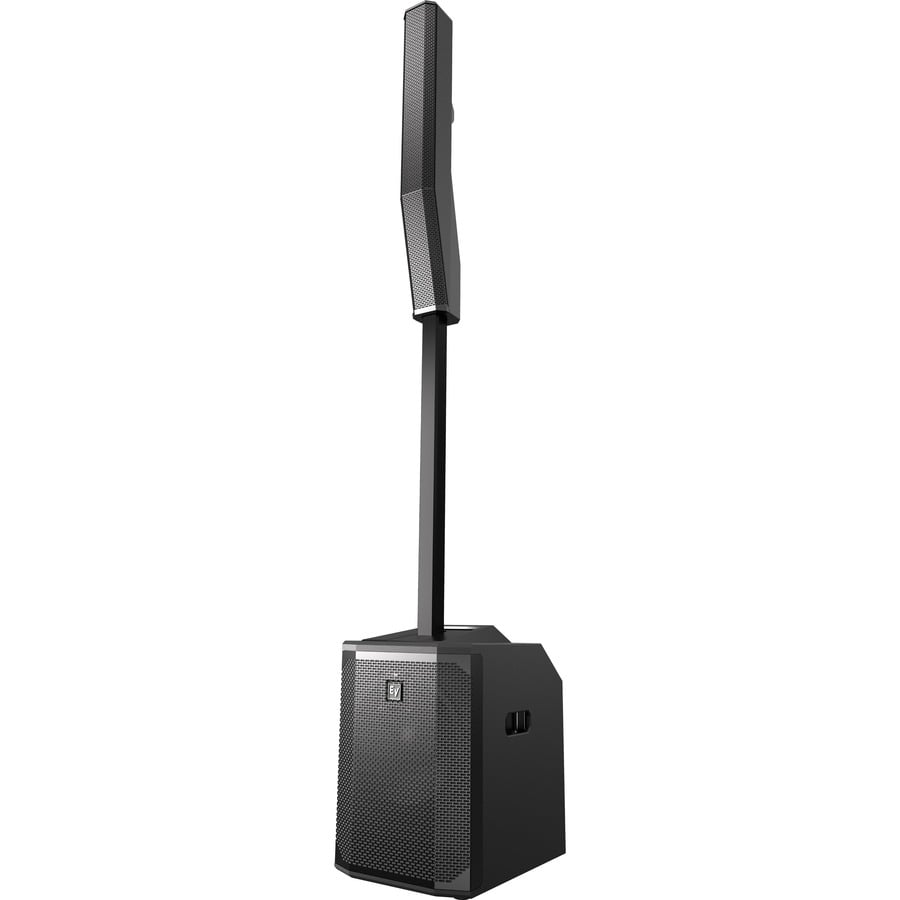

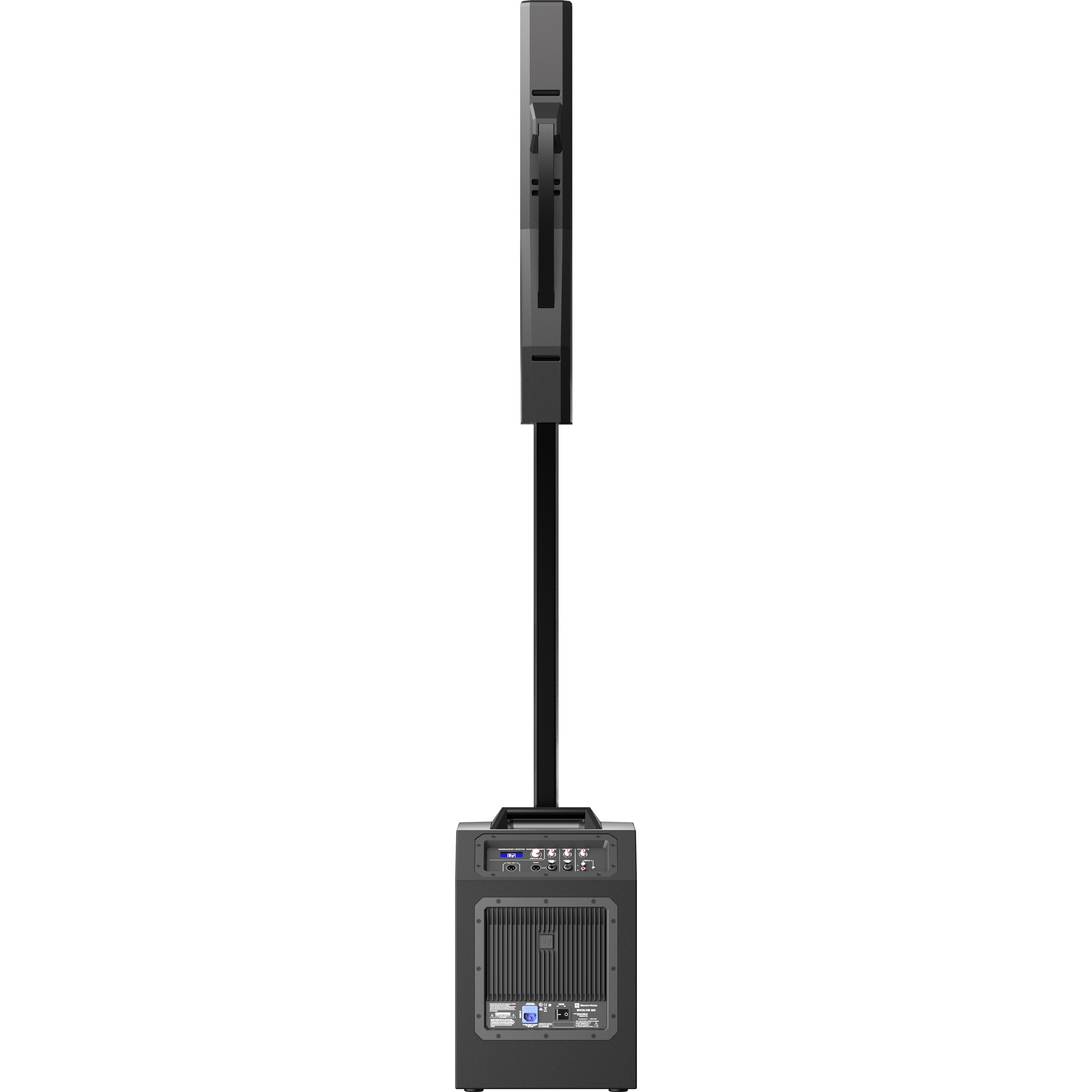

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.

The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12" subwoofer capable of a functional frequency output down to 37 Hz.

The bi-directional aluminum pole's connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control highfrequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low Energy (BTLE) technology for the wireless configuration, and monitoring of up to six EVOLVE 50 systems simultaneously. Highresolution Bluetooth® audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment. Bluetooth® is available in select countries.
Technical Information
Minimum Frequency Response:
37 Hz
Maximum Frequency Response:
20 kHz
Features:
  • Bluetooth Pairing
  • Built-in Amplifier
  • Built-in Subwoofer
  • Equalizer
  • Wireless Audio Stream
Portable:
Yes
Audio
Wireless Speaker(s):
Yes
Network & Communication
Bluetooth:
Yes
Power Description
Power Source:
AC
Physical Characteristics
Product Color:
Black
Height:
32.5"
Width:
4"
Depth:
6.8"
Weight (Approximate):
10.34 lb
Miscellaneous
Compatibility:
Mobile
Country of Origin:
China
Item Numbers
GTIN: 0655302131879, 0800549851640, 0818267640644
UPC: 655302131879, 800549851640, 818267640644
EAN: 0655302131879, 0800549851640, 0818267640644
UNSPSC: 43211607
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch EVOLVE50-TB Accessory is also known as BOS-EVOLVE50TB
