Maximum Viewing Angle:
360°

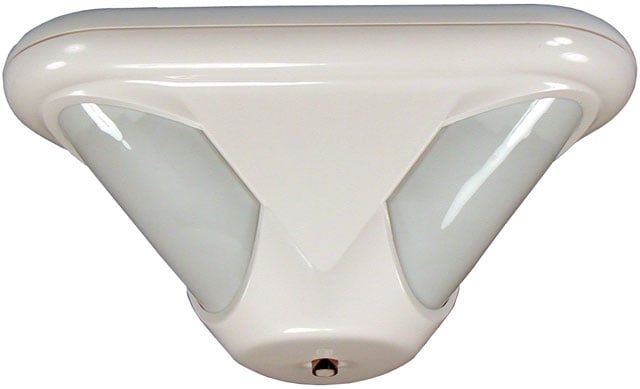

Bosch DS9370 Motion Detector
Part Number:
DS9370
Model:
DS9370 Series
Bosch DS9370 Series Motion Detector Model Overview
The DS9370 Series Ceiling-Mount Panoramic TriTech Detectors are designed to provide exceptional security coverage for high ceilings, up to 25 ft (7.6 m). Incorporating both passive-infrared (PIR) and microwave detection technologies, these detectors ensure rapid response to human movements while minimizing false alarms. With their adjustable optical arrays, customization for specific areas is effortless, making them perfect for a variety of environments. The advanced signal processing capabilities further enhance their reliability, ensuring that you receive prompt alerts without unnecessary interruptions.
Key Features
Specifications
Key Features
- Up to 25 ft (7.6 m) mounting height
- Fully-adjustable optical arrays for customized coverage
- High-efficiency LED and light-pipe system for easy walk testing
- First Step Processing (FSP) for instant human target response
- Microwave adaptive processing to reduce false alarms
- 360° coverage with a diameter of 70 ft (20 m)
Specifications
- Enclosure Design:
- Dimensions: 3.5 in. x 7 in. (8.9 cm x 17.8 cm)
- Material: High-impact ABS plastic enclosure
- Operating Temperature: -40°F to +120°F (-40°C to +49°C)
- Alarm Output: Form C relay rated at 3.0 W, 125 mA @ 28 VDC
- Power Requirements: 9 VDC to 15 VDC, 29 mA standby, 39 mA in alarm
- Radio Frequency Interference (RFI) Immunity: No alarm on critical frequencies from 26 MHz to 950 MHz
Bosch DS9370 Motion Detector Overview
Each DS9370 Series TriTech PIR/Microwave Detector model is panoramic and uses several patented processing techniques to provide excellent catch performance with freedom from false alarms. Each model can be mounted on ceilings as high as 7.6 m (25 ft). With three separate PIR sections that are fully adjustable, the DS9370 Series provides coverage integrity at all mounting heights, plus the ability to customize the coverage for specific areas.
Technical Information
Power Description
Input Voltage:
15 V DC
Miscellaneous
Additional Information:
- Fully adjustable optics for coverage integrity and customization
- Hinged chassis and base plate for easy installation
- High efficiency LED and light pipe system for easy walk testing
- First Step processing (FSP)
- Microwave adaptive processing
- 360° x 21 m (70 ft) diameter pattern
Item Numbers
GTIN:
0782695082041
UPC:
782695082041
EAN:
0782695082041
UNSPSC:
46171608
