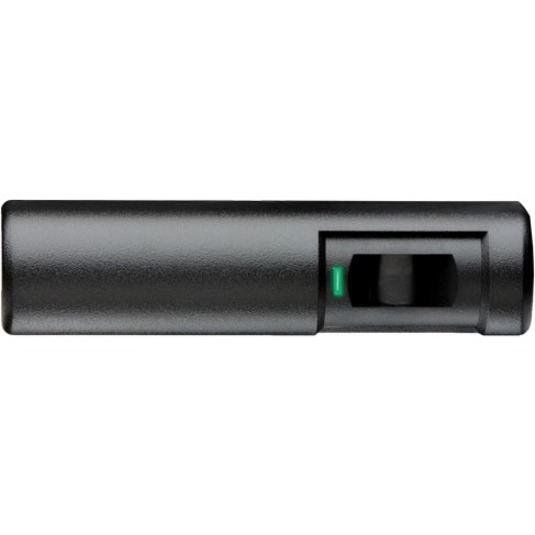

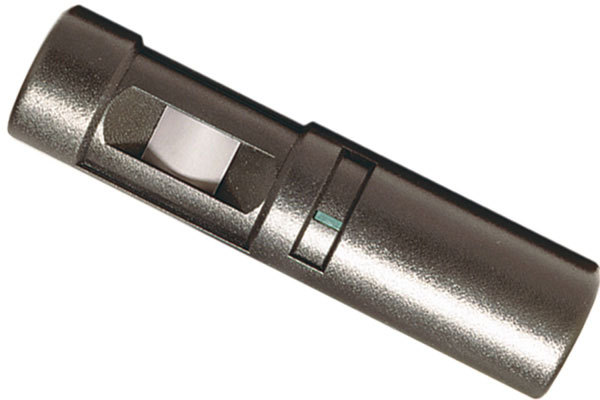

Bosch DS151i Access Control Equipment Model Overview
The DS150i and DS151i Request-to-Exit Sensors by Bosch are essential components for efficient access control systems. Designed for both single and double door applications, these reliable detectors utilize advanced motion detection technology to signal door control devices seamlessly. With flexible mounting options, including wall and ceiling installations, these sensors are perfect for a variety of settings. Their robust design ensures performance even in demanding environments, while the selectable relay trigger and fail-safe modes enhance system adaptability.
Key Features:
Single or double door use
Wall or ceiling mountable
Internal vertical pointability
Wrap-around coverage pattern
Externally visible activation LED
Selectible relay trigger mode
Programmable fail safe/fail secure modes
Specifications:
Alarm Output: 2 Form "C" relay contacts
Enclosure Design: High impact ABS plastic enclosure
Dimensions: 1.5 in. x 6.25 in. x 1.5 in. (3.8 cm x 15.9 cm x 3.8 cm)
Operating Temperature: -20°F to +120°F (-29°C to +49°C)
Indicators: 1 activation LED
Mounting: Surface mount on wall or ceiling
Power Requirements: 12 or 24 VAC, 12 or 24 VDC, 26 mA @ 12 VDC
Relay Latch Time: Adjustable to 60 seconds
Timer Mode: Programmable resettable or non-resettable mode
Bosch DS151I Access Control Equipment Overview
The Detector Series consists of the DS150i and DS151i Detectors specifically designed for Request-to-Exit (REX) applications. The DS150i and DS151i detect motion in their coverage area and signal an access control system or door control device.
The Bosch DS151I Access Control Equipment is also known as
BOS-DS151I
