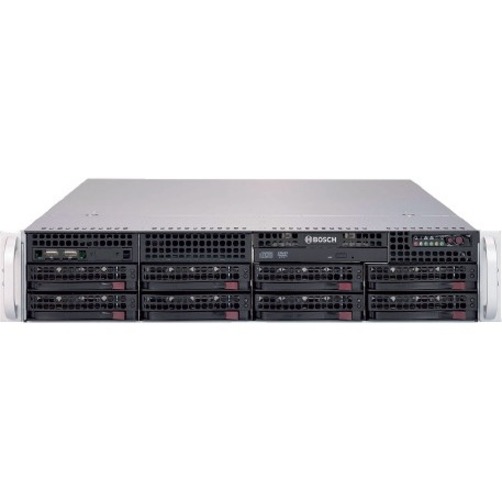

Bosch DIP-7388-8HD CCTV Camera System Overview
The DIVAR IP all-in-one 7000 family is an affordable, simple and reliable all-in-one recording, viewing and management solution for network surveillance systems of up to 256 channels (with 8 channels prelicensed).
DIVAR IP all-in-one 7000 2U is a 2U rack mount unit that combines advanced management and state-ofthe-art recording management into a single costeffective, plug-and-play IP recording appliance for ITminded customers.
System overview
The DIVAR IP all-in-one 7000 family utilizes an energy efficient, embedded design which reduces possible points of failure and boasts Bosch quality throughand-through. Utilizing "enterprise-rated" hard drives in a fault tolerant RAID-5 configuration, dual port Gigabit Ethernet network interface, 16 GB system memory and an Intel Xeon Hexa Core Processor, the device delivers high-end performance at a very affordable price.
Easy to install and operate, the system features wizard-based set-up and centralized configuration. Simply connect to the network and power the unit up - DIVAR IP all-in-one 7000 is ready to begin recording straight out of the box.
BVMS manages all IP and digital video and audio, plus all the security data being transmitted across your IP network. It seamlessly combines IP cameras and encoders, provides system-wide event and alarm management, system health monitoring, user and priority management.
Functions
The DIVAR IP all-in-one 7000 2U units feature highly energy-efficient hot-swap redundant power supplies, as well as front-swappable SATA-3 hard drives providing up to 96 TB of gross storage capacity. The DIVAR IP all-in-one 7000 2U units utilize Microsoft Windows Server IoT 2019 for Storage Standard.
Instant real time access to video
View high quality HD and even UHD video despite low or limited bandwidth connections.
Dynamic Transcoding technology ensures you can view your video immediately - anytime, anywhere. The built-in transcoder supports up to 2 x UHD resolution video streams in parallel.
Management
DIVAR IP Software Center provides a central user interface for software setup, upgrade and operation mode selection, which reduces installation and training requirements and keeps ongoing system management costs low.
Remote viewing
For remote viewing of a single DIVAR IP all-inone 7000 system, BVMS Operator Client is included. For multiple systems, add them to BVMS Enterprise Management Server.
Alternatively, use Video Security Client for viewing video from a separate workstation or mobile device.
DIVAR IP all-in-one 7000 2U is a 2U rack mount unit that combines advanced management and state-ofthe-art recording management into a single costeffective, plug-and-play IP recording appliance for ITminded customers.
System overview
The DIVAR IP all-in-one 7000 family utilizes an energy efficient, embedded design which reduces possible points of failure and boasts Bosch quality throughand-through. Utilizing "enterprise-rated" hard drives in a fault tolerant RAID-5 configuration, dual port Gigabit Ethernet network interface, 16 GB system memory and an Intel Xeon Hexa Core Processor, the device delivers high-end performance at a very affordable price.
Easy to install and operate, the system features wizard-based set-up and centralized configuration. Simply connect to the network and power the unit up - DIVAR IP all-in-one 7000 is ready to begin recording straight out of the box.
BVMS manages all IP and digital video and audio, plus all the security data being transmitted across your IP network. It seamlessly combines IP cameras and encoders, provides system-wide event and alarm management, system health monitoring, user and priority management.
Functions
The DIVAR IP all-in-one 7000 2U units feature highly energy-efficient hot-swap redundant power supplies, as well as front-swappable SATA-3 hard drives providing up to 96 TB of gross storage capacity. The DIVAR IP all-in-one 7000 2U units utilize Microsoft Windows Server IoT 2019 for Storage Standard.
Instant real time access to video
View high quality HD and even UHD video despite low or limited bandwidth connections.
Dynamic Transcoding technology ensures you can view your video immediately - anytime, anywhere. The built-in transcoder supports up to 2 x UHD resolution video streams in parallel.
Management
DIVAR IP Software Center provides a central user interface for software setup, upgrade and operation mode selection, which reduces installation and training requirements and keeps ongoing system management costs low.
Remote viewing
For remote viewing of a single DIVAR IP all-inone 7000 system, BVMS Operator Client is included. For multiple systems, add them to BVMS Enterprise Management Server.
Alternatively, use Video Security Client for viewing video from a separate workstation or mobile device.
Technical Information
Storage
Hard Drive Capacity:
64 TB
Network & Communication
Ethernet:
Yes
Remote Management:
Yes
Interfaces/Ports
USB:
Yes
Physical Characteristics
Height:
3.5"
Width:
17.2"
Depth:
25.5"
Weight (Approximate):
50.04 lb
Miscellaneous
Package Contents:
- 1 x Management Appliance, 2U 8X8TB 3rd Gen
- 1 x Rack Mount Kit
- 1 x Quick Installation Guide
- 1 x Registration Leaflet
- 2 x Power Cord
- 1 x QUERTY USB Keyboard
- 1 x USB Mouse
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0800549973915
UPC:
800549973915
EAN:
0800549973915
UNSPSC:
46171621
