Bosch DCNM-IDESKVID Fire & Intrusion Detector

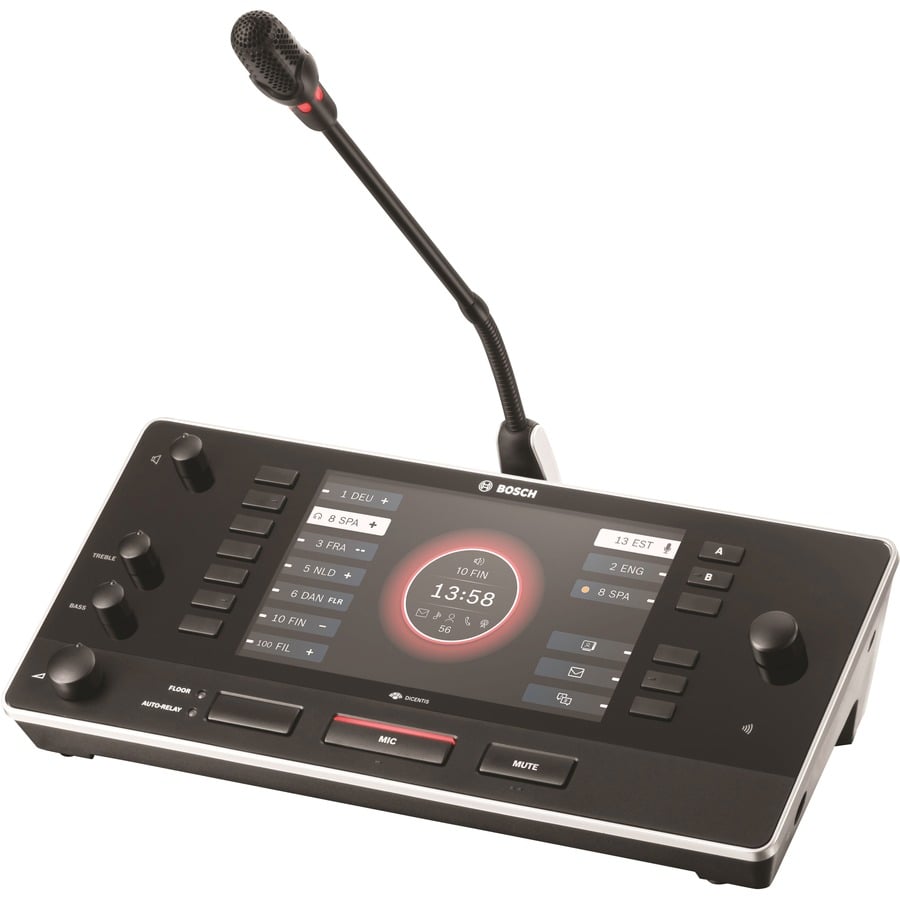

The DCNM-IDESKVID is an interpreter desk with a simplified, intuitive and ergonomic design and an HDMI video output to connect a 3rd party video screen. Clear positioning of the controls allows operation without mistakes. The interpreter desk provides only relevant information, a single glance is sufficient for the entire interpreting process. It fully complies with ISO 20109.

Functions

• Up to ten desks per booth
• Hot plug and play
• Automatic external headset microphone selection
• Hearing protection for predefined headphones and headsets
• Tactile feedback for all controls
• Audible feedback and pimples for visually impaired users
• High contrast 7 inch display
• Language and system configuration from the interpreter desk's configuration menu

Controls and indicators

• Headphone rotary volume control
• Headphone rotary bass and treble tone controls
• Loudspeaker rotary volume control
• Floor / auto-relay selection button and LED indicators
• Microphone button with red on-air and green "booth not in use" LED indicators
• Mute button
• Red on-air LED at the rear

Display section

• 7 relay language preset buttons, with indicators for selected preset and language: number, abbreviation and quality
• A, B (and C) language output buttons, with indicators for output: selection and state; language: number, abbreviation, engaged
• By default, the buttons at the right bottom side of the display section support the functionality
• Clock control (real-time and speech time)
• Video source selection, to select either the participant speaking or the participant's presentation to be shown on the external video screen
• Language overview, to show the quality of all available languages
• With an Ultimate license, these buttons can be configured for the functionality
• Language overview
• Clock control (real-time and speech time)
• Video source selection
• Speak slow notification
• Headphone selection
• Rotary control with integrated push button to change settings
• Loudspeaker selected language indicator
• Audible feedback active indicator (beeps)
• Microphone or external headset selection indicator
