Bosch D8224-SP Products

Bosch Accessories - SWITCH PLATE PROXIMITY READER
$274.74
Add to Quote
Bosch Accessories Accessory Model Overview
Enhance the operation of your Bosch product with the addition of genuine Bosch Parts.
Bosch D8224-SP Products Overview

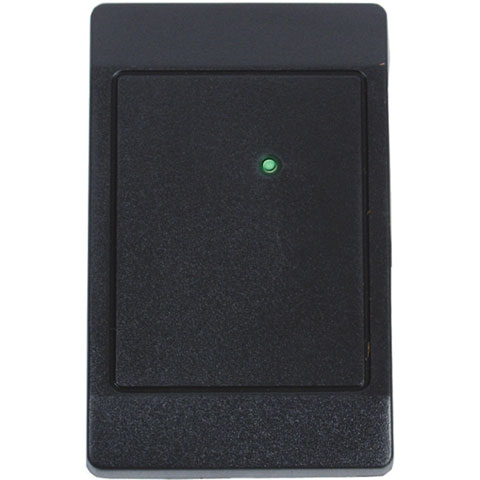

The D8224-SP Low-profile Proximity Card Reader can use Wiegand protocol or magnetic stripe interfaces. The reader is attractive, easily mounted, with a weatherproof enclosure. The unobtrusive reader is reliable, has a consistent read range, and low power consumption.
Technical Information
Identification Method:
Proximity
Features:
Weather Proof
Controls/Indicators
Indicators & Controls:
LED indicator

Power Description
Input Voltage:
16 V DC
Input Current:
115 mA
Physical Characteristics
Product Material:
Polycarbonate
Height:
4.7"
Width:
3"
Depth:
0.7"
Weight (Approximate):
3.30 oz
Miscellaneous
Additional Information:
  • Wiegand or magnetic stripe compatibility
  • Indoor and outdoor design
  • An additional external loop-back test allows for verifying the reader outputs and inputs without using additional test equipment.
  • Determines internal or external control of the LED and beeper
  • When a proximity card is presented to the reader, the red LED flashes green and the beeper sounds.
  • Both the beeper and LED configurations can be controlled individually by the host system.
  • Wiegand 500 ft (150 m)
  • Magnetic stripe 50 ft (15 m)
Compatibility:
  • ReadykeyPRO
  • Readykey
  • D9412G Control Panel
  • D7412G Control Panel
  • D8236-10 Wiegand Proximity Card, 26-bit
  • D8236KF-10 Wiegand Proximity Token, 26-bit
  • D8236TG-10 Wiegand Proximity Adhesive Tag, 26-bit
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0782695104231
UPC: 782695104231
EAN: 0782695104231
UNSPSC: 46171600, 46171619
