Sensing Technology:
Infrared
Detectable Medium:
Fire
Bosch Accessories Accessory Model Overview
Enhance the operation of your Bosch product with the addition of genuine Bosch Parts.

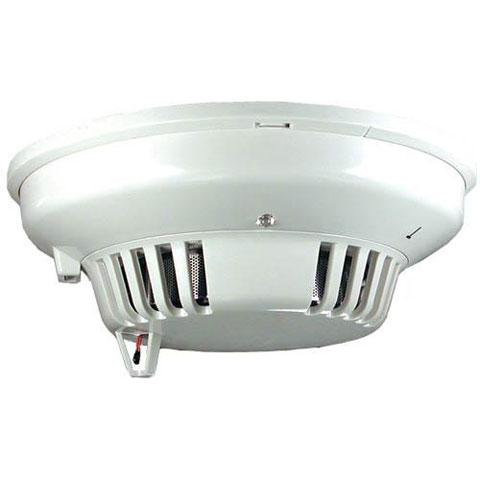

Bosch D273THS Fire & Intrusion Detector Overview
The D273 Series Detector models use an infrared (IR) LED light source and a silicon photodiode to measure light in a chamber. A fine screen covers the chamber to deter insects and reduce dust accumulation and nuisance alarms.
During a fire, smoke particles reflect light onto the photodiode. When the photodiode measurements exceed the alarm threshold, the detector signals an alarm condition. After the alarm condition clears, interrupt power at the control panel to reset the detector.
When a D132B Reversing Relay Module is used, the LED does not latch on alarm.
During a fire, smoke particles reflect light onto the photodiode. When the photodiode measurements exceed the alarm threshold, the detector signals an alarm condition. After the alarm condition clears, interrupt power at the control panel to reset the detector.
When a D132B Reversing Relay Module is used, the LED does not latch on alarm.
Technical Information
Controls/Indicators
Status Indicators:
- Alarm
- LED
Power Description
Input Voltage:
30 V DC
Physical Characteristics
Height:
2"
Diameter:
5"
Miscellaneous
Package Contents:
- D273THSR Four-Wire Smoke/Heat Detector with Sounder and Trouble Relay
- 1 x Literature Pack
Additional Information:
- Four-wire smoke detector with a 135°F heat sensor, a sounder, and a trouble relay
- Diameter: 5"
- Current at Alarm: 96 mA
- Current at Stand-by: 15 mA
Compatibility:
- Four-wire Control Panel
- Reversing Relay Module
Item Numbers
GTIN:
0782695023198
UPC:
782695023198
EAN:
0782695023198
UNSPSC:
46191501
