Device Supported:
Control Panel
Bosch D135A Accessory
Part Number:
D135A
Model:
Parts
Bosch Parts Accessory Model Overview
Products and parts from Bosch.

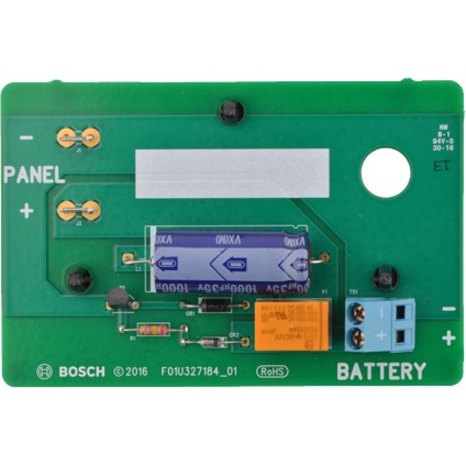

Bosch D135A Accessory Overview
The D135A works with compatible control panels to protect the battery from deep discharge in the event of an extended AC power outage. The D135A prevents deep discharge by disconnecting the battery from the control panel when battery voltage drops down to 9.5 VDC.
Technical Information
Power Description
Input Voltage:
12 V DC
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
122°F (50°C)
Physical Characteristics
Height:
1.3"
Width:
2.8"
Depth:
0.8"
Weight (Approximate):
0.74 oz
Miscellaneous
Additional Information:
- Battery Leads: 2
- Relative Humidity: 5% to 93% at +32°C (+90°F) non-condensing
- Temperature (operating): 0°C to +50°C (+32°F to +122°F)
- Maximum battery charge current: 2 A
- Maximum current from battery: 2 A
- Module current: 40 mA
- Voltage: 12 VDC nominal
- Cut off Voltage: 9.5 V
Compatibility:
Control Panels:
- B6512
- B5512/B5512E
- B4512/B4512E
- B3512/B3512E
Batteries:
- 1 x 7AH or 1 x 18 AH 12V battery
Certifications & Standards:
Canada:
- CAN/ULC S559 - Fire Signal Receiving Centres and Systems
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC:
46171600
Get help from a Barcoding Expert!
The Bosch D135A Accessory is also known as
BOS-D135A
