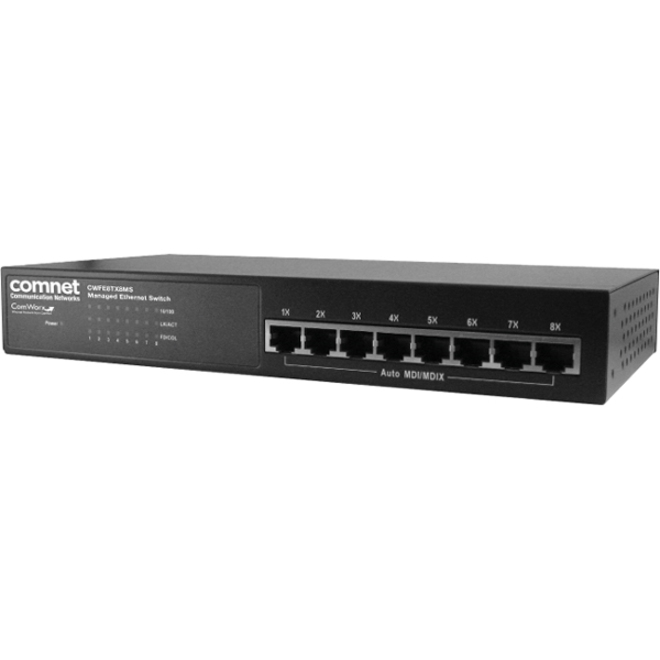

The ComNet™ CWFE8TX8MS Managed Ethernet Switch provides transmission of 100 BASE-TX Ethernet data. These units are available for use with conventional CAT-5e copper transmission media. Up to 8 electrical ports are available for easily implementing point-to-point, linear add-drop, drop-and-repeat, star or true self-healing ring and mesh network system architectures. The electrical ports support the 10/100 Mbps (100 BASE-TX) Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation. Plug-and-play design ensures ease of installation, and no electrical adjustments are ever required. The CWFE8TX8MS incorporates LED indicators for monitoring the operating status of the managed switch and network. This switch can be mounted within any standard 19-inch equipment rack using the ComNet RMB Rack Mount Bracket Adaptor Kit (sold separately).
The Datalogic 95B080000 is an optical encoder designed for automated identification and motion control applications across warehousing, logistics, and manufacturing environments. This incremental encoder reads rotational position and speed, making it essential for conveyor systems, sorting equipment, and precision machinery that require accurate position feedback. We offer this encoder as part of our comprehensive AIDC solutions to help streamline your identification processes.
What are the key technical specifications of the Datalogic 95B080000?
The Datalogic 95B080000 features a 40.5mm diameter housing with a solid 6mm shaft, 100 Pulse Per Revolution (PPR) resolution, and operates on 5-30 Vdc power supply. It includes a 1.5m cable connector for easy integration into your systems. This compact encoder is also known as the ENC41-S06-0100-C15 and is part of Datalogic's AMT/AST/ENC Compact Basic Line, designed for reliable performance in demanding warehouse and logistics applications.
Is the Datalogic 95B080000 suitable for harsh warehouse environments?
Yes, the Datalogic 95B080000 is built to withstand challenging industrial conditions typical of warehouse and logistics operations. Its robust construction and solid shaft design provide durability for continuous-duty applications in sorting systems, conveyor lines, and automated material handling equipment. Contact us today to discuss environmental specifications and mounting options that best fit your facility's requirements.
What voltage does the Datalogic 95B080000 Encoder require?
The Datalogic 95B080000 operates on a 5-30 Vdc power supply, providing flexible integration options for most industrial control systems and PLC configurations. This wide voltage range makes it compatible with standard warehouse automation infrastructure and reduces the need for additional power conditioning equipment. Visit barcodesinc.com or contact our team for guidance on proper power supply selection for your specific application.
How does the 100 PPR resolution of the Datalogic 95B080000 compare to other encoders?
The 100 Pulse Per Revolution (PPR) resolution of the Datalogic 95B080000 provides accurate position feedback suitable for most standard warehouse conveyor, sorting, and material handling applications. This resolution strikes a balance between precision and cost-effectiveness for typical logistics operations that don't require ultra-high-resolution feedback. We offer encoders with varying PPR specifications to match your accuracy requirements—contact us today to find the right solution for your needs.
What type of connector does the Datalogic 95B080000 use?
The Datalogic 95B080000 includes a 1.5m cable connector that facilitates straightforward integration into your existing industrial automation systems and control panels. The connector design is compatible with standard industrial control architectures used in warehouse management systems and conveyor automation. Available from us at barcodesinc.com, this encoder simplifies installation while maintaining reliable signal transmission in demanding warehouse environments.
The Bosch CWFE8TX8MS Products is also known as
CCN-CWFE8TX8MS
