Bosch CWFE1002BPOESHO/M Products

Bosch - ST Connector, sm, 1 fiber, -B Power Supply Included. 60w out
  • Expand your network capabilities with this 2 transceiver/media converter
  • With Optical Fiber cable, get the desired data transfer rate up to a required distance
  • With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
  • Can be placed on Desktop surface for standalone installation
Read More
$853.52
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch CWFE1002BPOESHO/M Products Overview

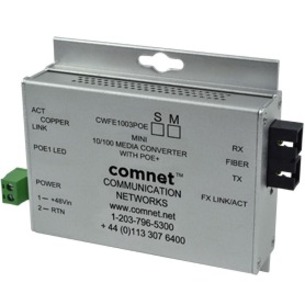

The ComNet™ CWFE100(X)POE/M Series 2-port media converters provide fullduplex fiber optic transmission of a single channel of 10/100 Mbps Ethernet data (10/100 BASE-TX) through multimode or single mode optical fiber. Type ST, SC or SFP optical connectors are available. They provide full compliance with IEEE 802.3at as Power Sourcing Equipment (PSE), with a maximum power of 30 watts in Mode A or Mode B, making them ideal for those applications where the remote equipment draws significant power. A higher output 60 watt model is available. Mode A and mode B are selected by the media converter automatically. The Ethernet electrical interface auto-negotiates to either 10 or 100 Mbps without the need for any user selection, and the optical interface operates at 100 Mbps (100-FX). A power supply providing 48 VDC at 1.25A is provided with each converter. Plug-and-play design ensures ease of operation, and no optical adjustments are ever required.

Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Management Port:
No
Number of PoE+ (RJ-45) Ports:
1
Number of ST Ports:
1
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Fiber Mode Supported:
Single-mode
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
  • 10/100Base-TX
  • 100Base-FX
Power Description
Power Source:
Power Supply
Physical Characteristics
Form Factor:
  • Desktop
  • Rail-mountable
Height:
1"
Width:
3.7"
Depth:
4"
Miscellaneous
Package Contents:
  • Commercial Grade 100Mbps Media Converter with 48V POE, "B" Unit
  • Power Supply
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0845770009330
UPC: 845770009330
EAN: 0845770009330
UNSPSC: 43201553
