Bosch CNGE3FE7MS2 Products

Bosch - MANAGED ETHERNET SWITCH 3 PORT 1000 MBPS+7 PORT 100 MBPS
  • Ethernet Switch provides dependable and powerful connectivity for maximum usability
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 7 ports
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • Rail-mountable form factor for added reliability and dependability
  • Managed switch provides a reliable foundation for your network
  • Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • 32 MB memory seamlessly handles multiple connections together
Read More
$1,591.34
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch CNGE3FE7MS2 Products Overview

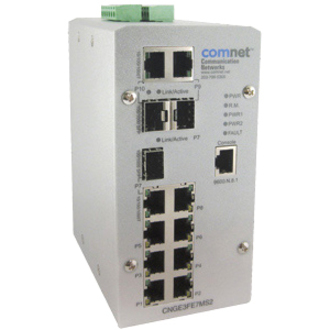

The ComNet™ CNGE3FE7MS2 Managed Ethernet Switch provides robust transmission of (7) 10/100 BASE-TX and (3) 10/100/1000TX or 100/1000FX combo ports, of gigabit Ethernet data. Unlike most Ethernet switches, these environmentally hardened units are designed for direct deployment in difficult out-of-plant or roadside operating environments, and are available for use with either conventional CAT-5e copper or optical transmission media. Diverse media selection allows for easy implementation of point-to-point, linear add-drop, drop-and-repeat, star, or true self-healing ring and mesh network system architectures. The 7 electrical ports support the 10/100 Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation. 3 ports are 10/100/1000 configurable for copper or fiber media for use with multimode or single mode optical fiber, selected by optional SFP modules. These network managed layer 2 switches are optically (100/1000 BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet devices. Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are ever required. The CNGE3FE7MS2 incorporates LED indicators for monitoring the operating status of the managed switch and network. These units are DIN-rail or wall mountable.
Interfaces/Ports
Total Number of Network Ports:
7
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Management Port:
Yes
Number of Network (RJ-45) Ports:
7
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Twisted Pair Cable Standard:
Category 6
Ethernet Technology:
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology:
  • 10/100Base-TX
  • 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
3
Expansion Slot Type:
SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
3
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
  • Web-based Management
  • SNMP v1, v2c, v3
  • QoS
  • VLAN
  • Syslog
  • MIB II
  • DHCP
  • CLI
  • Telnet
Memory
Standard Memory:
32 MB
Memory Technology:
DRAM
Flash Memory:
4 MB
Reliability
MTBF:
100000 Hour
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Form Factor:
  • Rail-mountable
  • Wall Mountable
Height:
6"
Width:
2.8"
Depth:
4.1"
Weight (Approximate):
5 lb
Miscellaneous
Package Contents:
  • CNGE3FE7MS2 Ethernet Switch
  • 90-264VAC Power Supply
Certifications & Standards:

IEEE Standards:

  • 802.3
  • 802.3u
  • 802.3ab
  • 802.3z
  • 802.3x
  • 802.3ad
  • 802.1d
  • 802.1w
  • 802.1p
  • 802.1q
  • 802.1x
  • 802.1ab

Safety:

  • UL
  • cUL
  • CE/EN60950-1
  • UL 508 Class 1, Division 2, Groups A, B, C and D for Hazardous Locations

Stability Testing:

  • IEC60068-2-32
  • IEC60068-2-27
  • IEC60068-2-6

EMI:

  • FCC Class A
  • CE EN61000-4-2
  • CE EN61000-4-3
  • CE EN61000-4-4
  • CE EN61000-4-5
  • CE EN55022
  • CE EN61000-4-6
  • CE EN61000-4-8
  • CE EN61000-6-2
  • CE EN61000-6-4
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0845770002201, 5712505639603
UPC: 845770002201
EAN: 0845770002201, 5712505639603
UNSPSC: 43222612
