Product Description:

Hardened 4 FX Port 1000Mbps + 24 TX Port 1000Mbps Managed

Explore all Bosch Parts Accessories

Add to Quote

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch CNGE28FX4TX24MSPOE+ Products Overview

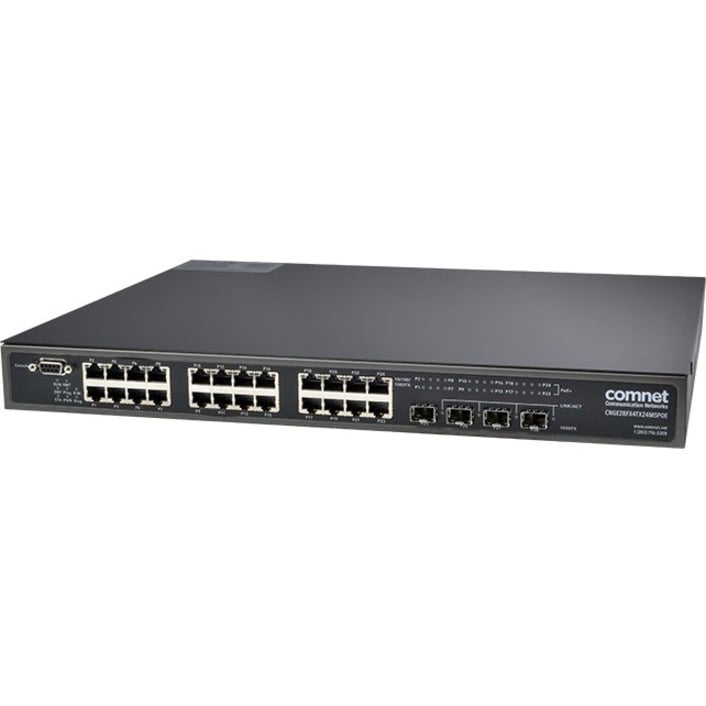

The ComNet™ CNGE28FX4TX24MSPOE+ Layer 2 Managed 28 Port Ethernet Switch supports twenty-four (24) 10/100/1000 BASE-TX ports and four (4) 1000BASE-FX ports of Ethernet data. PoE+ power is available for distribution across all 24 BASE-TX ports. The four 1000BASE-FX combination ports are 1000TX or SFP* configurable for fiber type (multimode or single-mode), connector type and distance. The exclusive C-Ring redundant ring feature protects networks from interruptions or temporary malfunctions with its fast recovery technology. The electrical ports support the 10/100/1000 Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are included. The CNGE28FX4TX24MSPOE+ are optically (1000BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet device and are hardened for use in harsh operating environments.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Management Port:

Yes

USB:

Number of PoE+ (RJ-45) Ports:

Stack Port:

Port/Expansion Slot Details:

24 x Gigabit Ethernet Network
4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T
1000Base-FX

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP

Number of SFP Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

SNMP v1/v2c/v3
CLI
VLAN
Telnet
RMON
Syslog
DHCP
Web Based Management

Reliability

MTBF:

100000 Hour

Power Description

PoE (RJ-45) Port:

Power Source:

Power Supply

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Rack-mountable
Desktop

Height:

1.7"

Width:

17"

Depth:

13.5"

Miscellaneous

Package Contents:

CNGE28FX4TX24MSPOE+ Ethernet Switch
Rack-mount Installation Kit
Console Cable
AC Power Cable

Certifications & Standards:

FCC
CE
C-Tick
cUL
EMI FCC Part 15, CISPR (EN55022) Class A
EMS EN61000-4-2
ESD EN61000-4-3
RS EN61000-4-4
EFT EN61000-4-5
Electrical Surge EN61000-4-6
CS EN61000-4-8, EN61000-4-11
Mechanical Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6

Standards:

802.3af
802.3 for 10Base-T
802.3u for 100Base-TX and 100Base-FX
802.3z for 1000Base-X
802.3ab for 1000Base-T
802.3at for Power Sourcing Equipment (PSE) and PoE (up to 30 watts per port)
802.3x for Flow control
802.3ad for LACP (Link Aggregation Control Protocol)
802.1D for STP (Spanning Tree Protocol)
802.1p for COS (Class of Service)
802.1Q for VLAN Tagging
802.1w for RSTP (Rapid Spanning Tree Protocol)
802.1s for MSTP (Multiple Spanning Tree Protocol)
802.1x for Authentication
802.1AB for LLDP (Link Layer Discovery Protocol)

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0845770010442, 5711045941016

UPC: 845770010442

EAN: 0845770010442, 5711045941016

UNSPSC: 43222612
