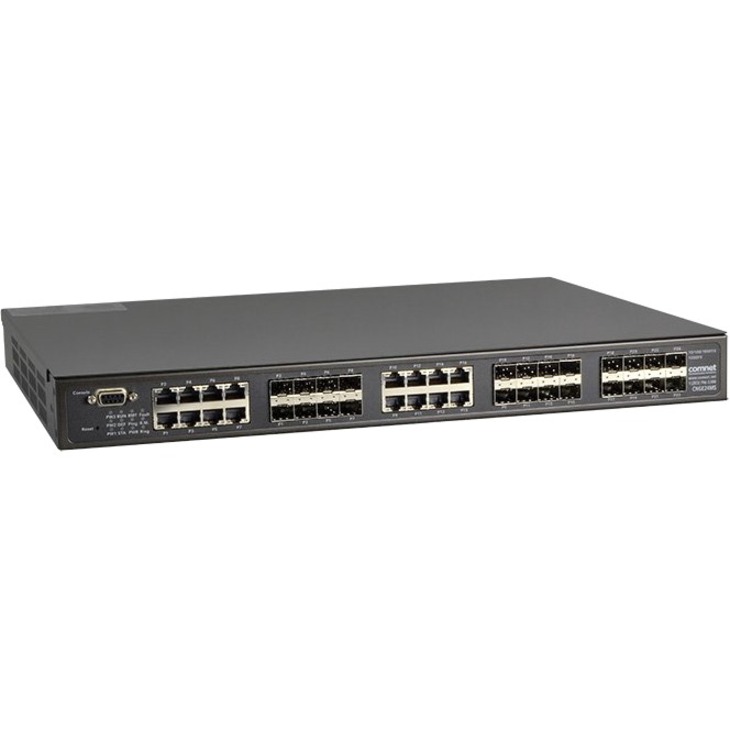

Bosch CNGE24MS Network Switch

The Bosch CNGE24MS Network Switch has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Bosch - 24 Port 1000Mbps Managed Switc 16 TX/FX (SFP)Combo Ports, 8 1
  • Ethernet Switch provides reliable, efficient connectivity to ensure maximum feasibility
  • Expand your network capacity with the help of 16 networking ports and transfer your data quickly and easily
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • The desktop installation makes it ideal for deployments outside the wiring closet
  • Management capability provides control over setup and configuration of your network
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Twisted Pair media support ensures maximum convenience and great usability
Read More

Need a different version? See all Bosch Parts Accessories

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Bosch CNGE24MS Network Switch
Bosch CNGE24MS Network Switch Bosch CNGE24MS Network Switch
Bosch CNGE24MS Network Switch
Bosch CNGE24MS Network Switch
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch CNGE24MS Network Switch Overview
The ComNet™ CNGE24MS has eight 100/1000Base-FX SFP ports and sixteen Gigabit combo ports that allow for TX or FX transmission. All SFP ports utilize ComNet SFP modules for fiber and connector type and distance. The IEEE802.3-compliant unit offers multiple Ethernet redundancy protocols (ComRing, C-Ring, and MSTP/RSTP/STP) which protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. The switch provides advanced IP-based management that can limit the maximum bandwidth for each connected IP device, allowing the user to adjust usage. Application-based QoS can set a higher priority for data streaming. The Device-Binding function can prevent unauthorized network access, increasing security. The unit also provides advanced DOS/DDOS auto prevention. If IP flow becomes too large, too quickly, the switch will lock the source IP address for a set period preventing unauthorized access. The switch offers centralized and convenient management and is also configurable by Web-based Telnet, and Console (CLI) configurations.
Interfaces/Ports
Total Number of Network Ports:
16
Token Ring Port:
No
LRE Port:
No
Management Port:
Yes
Number of Network (RJ-45) Ports:
16
Port/Expansion Slot Details:
  • 16 x Gigabit Ethernet Network
  • 24 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-FX
  • 1000Base-X
I/O Expansions
Number of Total Expansion Slots:
24
Expansion Slot Type:
SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
24
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
  • SNMP v1/v2c/v3
  • RMON
  • VLAN
  • CLI
  • DHCP
  • Telnet
  • Web Based Management
Reliability
MTBF:
100000 Hour
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Form Factor:
  • Rack-mountable
  • Desktop
Height:
1.7"
Width:
17"
Depth:
13.5"
Weight (Approximate):
9.48 lb
Miscellaneous
Certifications & Standards:
  • CE
  • C-Tick
  • EMI: FCC Part 15, CISPR (EN55022) class A
  • EMS: EN61000-4-2 (ESD)
  • EN61000-4-3 (RS)
  • EN61000-4-4 (EFT)
  • EN61000-4-5 (Surge)
  • EN61000-4-6 (CS)
  • EN61000-4-8
  • EN61000-4-11
  • Shock: IEC60068-2-27
  • Free Fall: IEC60068-2-32
  • Vibration: IEC60068-2-6
  • Safety: EN60950-1
IEEE Standards:
  • 802.3 for 10Base-T
  • 802.3u for 100Base-TX and 100Base-FX
  • 802.3ab for 1000Base-T
  • 802.z for 1000Base-X
  • 802.3x for Flow control
  • 802.3ad for LACP (Link Aggregation Control Protocol )
  • 802.1p for COS (Class of Service)
  • 802.1Q for VLAN Tagging
  • 802.1D for STP (Spanning Tree Protocol)
  • 802.1w for RSTP (Rapid Spanning Tree Protocol)
  • 802.1s for MSTP (Multiple Spanning Tree Protocol)
  • 802.1x for Authentication
  • 802.1AB for LLDP (Link Layer Discovery Protocol)
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0845770009958
UPC: 845770009958
EAN: 0845770009958
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch CNGE24MS Network Switch is also known as CCN-CNGE24MS
