Bosch CNFE5SMSPOE Products

Bosch - 5 PORT SELF-MANAGED SWITCH 10/ 100 MBPS ETHERNET 4TX COPPER

Effectively increases available bandwidth on your network
With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to?places where a power outlet is not present
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
Built-in power supply to ensure all components are being supplied with accurate voltage
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Rack-mountable form factor for added reliability and dependability
Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Need a different version? See all Bosch Parts Accessories

$360.18

Add to Quote

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch CNFE5SMSPOE Products Overview

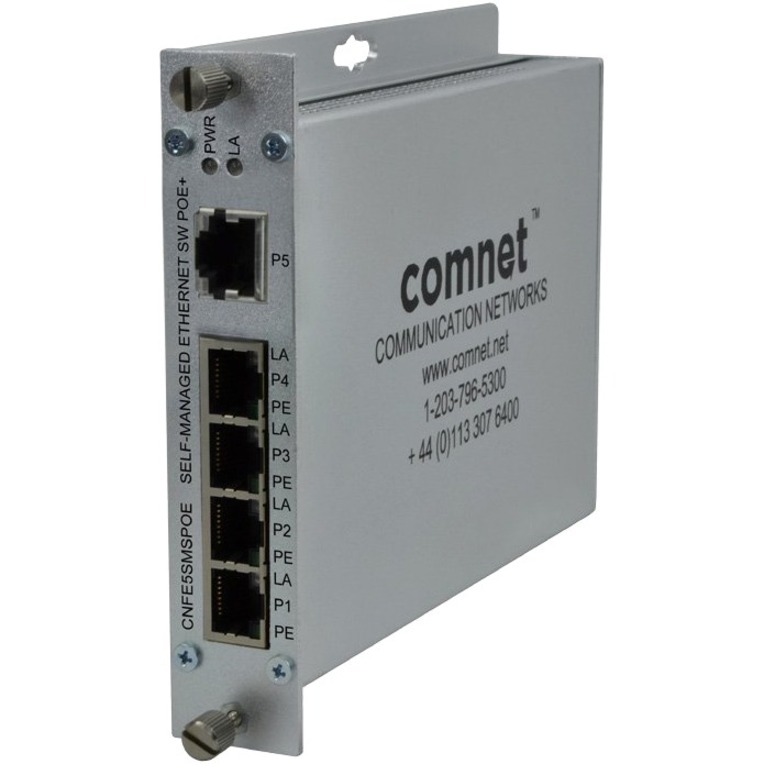

The ComNetTM CNFE5SMSPOE is a five-port self-managed Ethernet switch with uplink management functionality. It provides 5 ports operating at 10/100Mbps and is designed to combine Ethernet data from the four electrical ports into a fifth electrical port and forward that data to the next network device. There is no programming required to use this product. The ComNet CNFE5SMSPOE comes pre-programmed, preventing network video flooding with a switch selection that allows the switch to be used as an uplink or as an unmanaged switch. Ports 1-4 can supply up to thirty watts of Power over Ethernet (PoE) power and incorporate PoE+ features based on the IEEE 802.3at standard. It is "Plug-and-Play" easy to use.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Uplink Port:

Bypass:

Modular:

Management Port:

USB:

Number of PoE+ (RJ-45) Ports:

Number of Network (RJ-45) Ports:

Port/Expansion Slot Details:

5 x Fast Ethernet Network

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100Base-TX

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Reliability

MTBF:

100000 Hour

Power Description

PoE (RJ-45) Port:

Power Source:

Power Supply

Physical Characteristics

Form Factor:

Rack-mountable
Rail-mountable
Wall Mountable

Height:

1.1"

Width:

6.1"

Depth:

5.3"

Miscellaneous

Certifications & Standards:

IEEE Standards:

802.3
802.3at

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

United States

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0845770009118

UPC: 845770009118

EAN: 0845770009118

UNSPSC: 43222612

Reviews

Q&A

Get help from a Barcoding Expert!

The Bosch CNFE5SMSPOE Products is also known as CCN-CNFE5SMSPOE
