Bosch CNFE4+1SMSM2 Network Switch

Bosch - 5 Port Self-Managed Switch, 10 Ethernet 1FX, MM, 2 Fiber ST,
  • Effectively increases available bandwidth on your network
  • With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to?places where a power outlet is not present
  • Quickly and easily set up a wired network with 5 networking ports
  • Power Supply power source for required power supply to ensure maximum efficiency
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
  • Management capability provides control over setup and configuration of your network
  • Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
  • Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Read More
$1,073.51
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch CNFE4+1SMSM2 Network Switch Overview

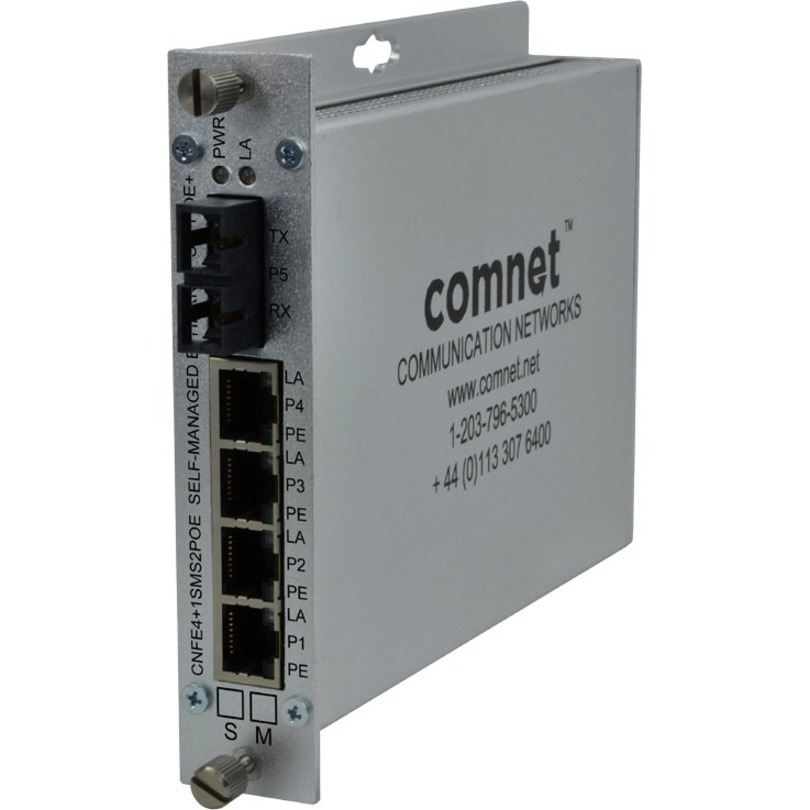

The ComNetTM CNFE4+1SMS(M,S)2POE is a five-port Ethernet switch with uplink management functionality and provides 4 copper ports operating at 10/100 Mbps and is designed to combine four electrical ports into a single optical port that forwards this data to the next network device. The fiber interface has an option of SC or ST connector type. There is no programming required to use this product. The CNFE4+1SMS(M,S)2POE comes pre-programmed, preventing network video flooding with dip switch selection of fiber port as uplink or as an unmanaged switch. Ports 1-4 can supply up to thirty watts of power ("Power over Ethernet") and incorporate PoE+ features based on the IEEE 802.3at standard.It is "Plug-and-Play".
Interfaces/Ports
Total Number of Network Ports:
5
Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Number of PoE+ (RJ-45) Ports:
4
Port/Expansion Slot Details:
5 x Fast Ethernet Network
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Fiber Optic Cable Standard:
62.5/125 µm
Fiber Mode Supported:
Multi-mode
Ethernet Technology:
Fast Ethernet
Network Technology:
  • 10/100Base-TX
  • 100Base-FX
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Reliability
MTBF:
100000 Hour
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Rail-mountable
  • Rack-mountable
Height:
1.1"
Width:
6.1"
Depth:
5.3"
Miscellaneous
Certifications & Standards:
  • FCC
  • CE
  • UL
  • cUL
IEEE Standards:
  • 802.3
  • 802.3at
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0845770009477
UPC: 845770009477
EAN: 0845770009477
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch CNFE4+1SMSM2 Network Switch is also known as CCN-CNFE41SMSM2
