Bosch CNFE2002M1A Accessory

Part Number: CNFE2002M1A
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$1,373.72

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Ports
3
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Number of ST Ports
1

Product Description:

  2TX TO 1FX 100MB MEDIA CONVRTR
Explore all Bosch Parts Accessories
Add to Quote
Bosch CNFE2002M1A Accessory
Bosch CNFE2002M1A Accessory
Bosch CNFE2002M1A Accessory Bosch CNFE2002M1A Accessory

Bosch Parts Accessory Model Overview

Products and parts from Bosch.
Bosch CNFE2002M1A Accessory Overview

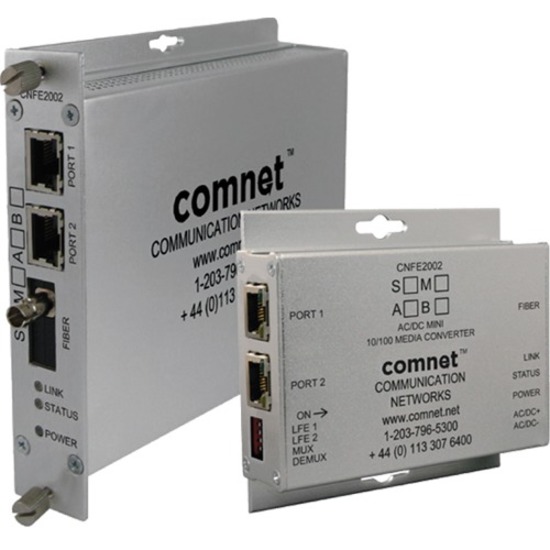

The ComNet Ethernet CNFE200X media converter series are two-channel Ethernet electrical to optical media converters with optional PoE+. These auto-negotiating devices accept two 10/100 Mbps electrical inputs and convert this to a single 100 Mbps optical output. This series of media converters are available as multimode or single-mode and one and two fiber SC and ST optical connectors. The ComNet exclusive Demux feature allows for port isolation, replicating two media converters over one fiber. The ComNet exclusive Mux feature prevents network video flooding of multicast traffic with DIP switch selection of the fiber port as a dedicated uplink path. The CNFE200(X) series can be powered by wide range AC or DC input while the CNFE200(X)POE units meet the 802.3at standard and provide 30 watts of PoE+ power, with an option for a 60 watt CNFE200(X)POEHO model. The PoE models can be powered by a sold seperately 48 to 57 volt DC power supply.

Interfaces/Ports
Total Number of Ports:
3
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
Number of ST Ports:
1
ST Port Type:
Simplex
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Fiber Mode Supported:
Multi-mode
Fiber Optic Wavelength:
  • 1310 nm
  • 1550 nm
Maximum Distance Supported:
1.86 Mile
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
  • 10/100Base-TX
  • 100BASE-FX
Power Description
Power Source:
AC Adapter
Physical Characteristics
Height:
1.1"
Width:
3.7"
Depth:
4.1"
Miscellaneous
Package Contents:
  • 2 Channel 10/100 Mbps Ethernet 1310/1550nm
  • DC Plug-in Power Supply
    • Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • WEEE
    Country of Origin:
    United States
    Warranty
    Limited Warranty:
    Lifetime
    Item Numbers
    UNSPSC: 43201553
