Bosch CNFE1004S1B Products

Bosch - 100Mbps Media Converter (B), SC Connector, sm, 1 fiber
  • Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
  • Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
  • With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
  • The Rail-mountable provides convenient installation
Read More
$949.32
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch CNFE1004S1B Products Overview

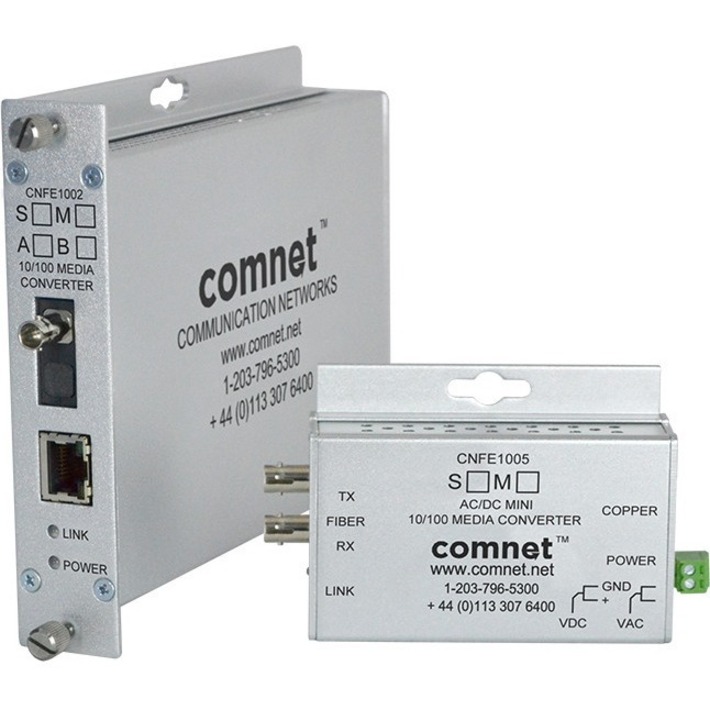

The ComNet™ Ethernet CNFE100X media converter series are one-channel Ethernet electrical to optical media converters. These auto-negotiating devices accept a 10/100 Mbps electrical input and convert this to a 100 Mbps optical output. This series of media converters use multimode and single-mode optical fiber and one and two fiber SC and ST optical connectors. LED indicators confirm operational status. All models are environmentally hardened with no electrical or optical adjustments (Plug and Play). Packaged in the exclusive ComNet ComFit housing, the standard size units may be either wall or rack mounted. Models within the series are also available in a small size. The units are powered by an included DC power supply.

Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Management Port:
No
Number of PoE+ (RJ-45) Ports:
1
Number of SC Ports:
1
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Fiber Mode Supported:
Single-mode
Fiber Optic Wavelength:
  • 1550 nm
  • 1310 nm
Maximum Distance Supported:
12.43 Mile
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
  • 10/100Base-TX
  • 100Base-FX
Power Description
Power Source:
Power Supply
Physical Characteristics
Form Factor:
  • Rail-mountable
  • Rack-mountable
Height:
1.1"
Width:
5.3"
Depth:
6.1"
Miscellaneous
Package Contents:
  • CNFE1004S1B Transceiver/Media Converter
  • Power Supply
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0845770003390
UPC: 845770003390
EAN: 0845770003390
UNSPSC: 43201553
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch CNFE1004S1B Products is also known as CCN-CNFE1004S1B
