Total Number of Ports:
3
Network (RJ-45):
Yes
DVI:
No
USB:
No
Management Port:
No
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
2
SC Port Type:
Duplex
Bosch Parts Accessory Model Overview
Products and parts from Bosch.

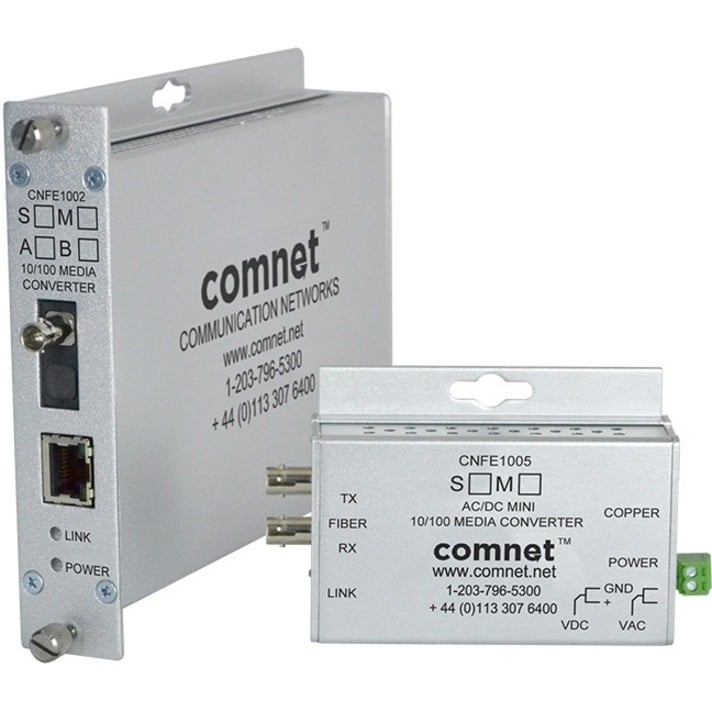

Bosch CNFE1003M2A Products Overview
The ComNet™ Ethernet CNFE100X media converter series are one-channel Ethernet electrical to optical media converters. These auto-negotiating devices accept a 10/100 Mbps electrical input and convert this to a 100 Mbps optical output. This series of media converters use multimode and single-mode optical fiber and one and two fiber SC and ST optical connectors. LED indicators confirm operational status. All models are environmentally hardened with no electrical or optical adjustments (Plug and Play). Packaged in the exclusive ComNet ComFit housing, the standard size units may be either wall or rack mounted. Models within the series are also available in a small size. The units are powered by an included DC power supply.
Interfaces/Ports
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Fiber Mode Supported:
Multi-mode
Fiber Optic Wavelength:
1310 nm
Maximum Distance Supported:
1.86 Mile
Network & Communication
Ethernet Technology:
Fast Ethernet
Network Technology:
- 10/100Base-T
- 10/100Base-TX
- 100Base-FX
Power Description
Power Source:
Power Supply
Physical Characteristics
Form Factor:
- Rail-mountable
- Wall Mountable
- Rack-mountable
Height:
1.1"
Width:
5.3"
Depth:
6.1"
Miscellaneous
Package Contents:
- CNFE1003M2A Transceiver/Media Converter
- Power Supply
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0845770002010
UPC:
845770002010
EAN:
0845770002010
UNSPSC:
43201553
Get help from a Barcoding Expert!
The Bosch CNFE1003M2A Products is also known as
CCN-CNFE1003M2A
