Bosch CCSD-DL Security Camera

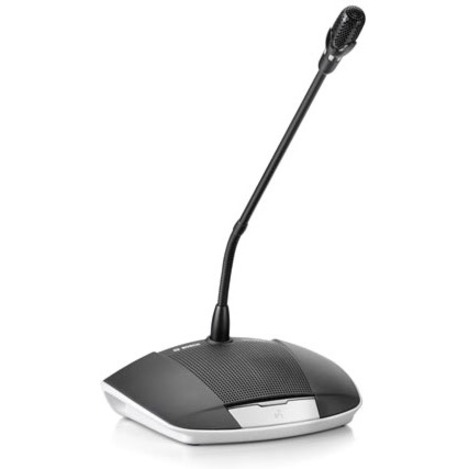

Bosch - CCS 1000 D Discussion Device, includes fixed long microphone and 2 meter attached cable
  • Wired connection ensures a worry-free signal quality while speaking
  • Capable to throw a crisp and clear audibility with 200 Hz - 12.50 kHz frequency response
  • Can be placed on a desk to ensure a noise-free voice to the listeners
Read More

Need a different version? See all Bosch Parts Accessories

$626.77
Add to Quote
Add to My Shopping List Add to Compare
Bosch CCSD-DL Security Camera
Bosch CCSD-DL Security Camera Bosch CCSD-DL Security Camera
Bosch CCSD-DL Security Camera
Bosch CCSD-DL Security Camera
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch CCSD-DL Security Camera Overview
Discussion Devices are connected in a daisy-chain configuration to the Control Unit of a CCS 1000 Digital Discussion System. Their plug-and-play functionality allows them to be conveniently connected to and removed from the system as required. A power down or restart of the system is not necessary, which ensures for fast installation and reconfiguration times. Participants can take part in a discussion by speaking into the microphone and listening to proceedings through the built-in loudspeaker or (optional) headphones.
Technical Information
Connectivity Technology:
Wired
Minimum Frequency Response:
200 Hz
Maximum Frequency Response:
12.50 kHz
Microphone
Microphone Type:
Desktop
Interfaces/Ports
Host Interface:
Proprietary
Physical Characteristics
Product Color:
  • Black
  • Gray
Height:
2.5"
Width:
8"
Depth:
5.7"
Weight (Approximate):
2.20 lb
Miscellaneous
Additional Information:
  • Power consumption : 1.3 W
  • Frequency response : 30 Hz to 20 kHz (System electrical)
  • THD : <0.5 %
  • S/N : >93 dBA
  • Sampling rate : 44.1 kHz
  • Headphones load impedance : > 32 ohms < 1k ohm
  • Loudspeaker max. peak output power : 4 W
  • Loudspeaker nominal output : 72 dB SPL
  • Microphone polar pattern : Cardioid
  • Microphone nominal input : 85 dB SPL
  • Mounting : Tabletop (portable or fixed)
  • Material (top) : Plastic ABS+PC
  • Material (base) : Metal ZnAl4
  • Operating temperature : 0 ºC to +35 ºC (+32 ºF to +95 ºF)
  • Storage and transport temperature : -40 ºC to +70 ºC(-40 ºF to +158 ºF)
  • Relative humidity : 5% to 98% non-condensing
  • Air pressure : 600 to 1100 hPa
Environmentally Friendly:
Yes
Country of Origin:
China
Item Numbers
GTIN: 0800549759267
UPC: 800549759267
EAN: 0800549759267
UNSPSC: 52161520
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch CCSD-DL Security Camera is also known as BOS-CCSDDL
