Bosch B6512K-C-920 Security Camera
Part Number:
B6512K-C-920
Bosch Accessory Model Overview
Products and parts from Bosch.
Technical Information
Number of Events Log:
1000
Connectivity Technology:
Wired/Wireless
Network & Communication
Power Description
Miscellaneous
Package Contents:

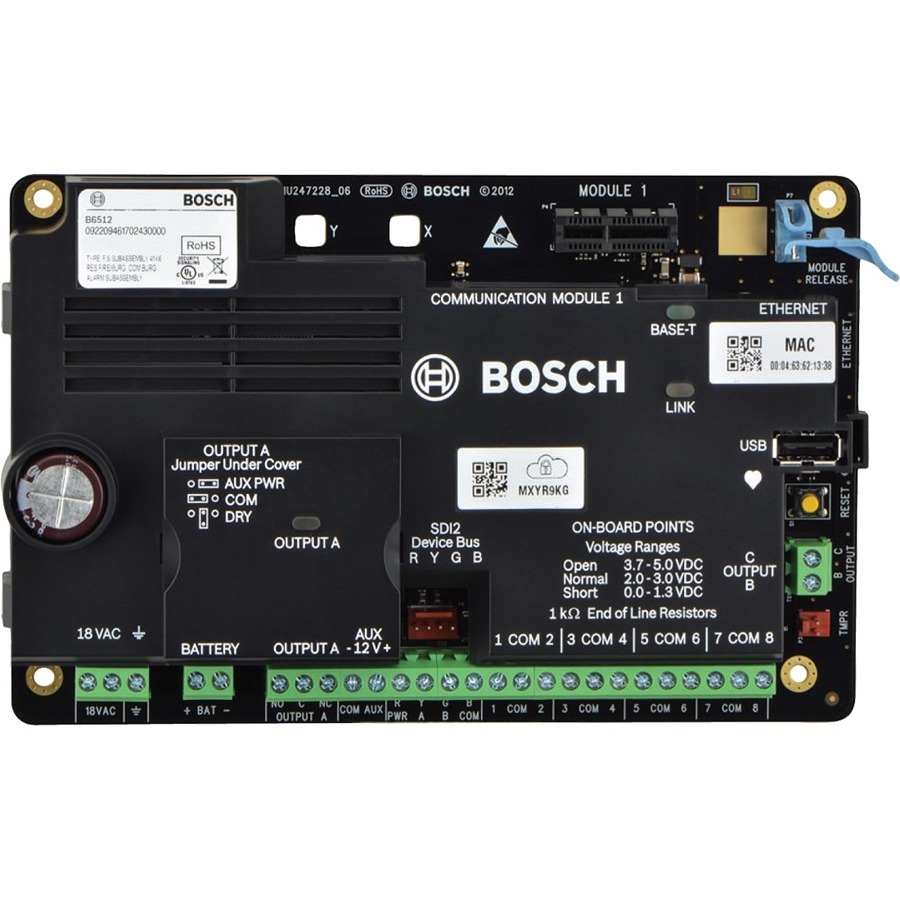

- B6512 IP Control Panel, 96 Points
- Plug-In Transformer
- B920 Keypad
Additional Information:
- Ethernet:10/100 full duplex
- Relative humidity 5% to 93% at +90? (+32?), non-condensing
- Temperature (operating) +32°F to +122°F (0°C to +49°C)
- Areas 6
- Custom functions 6
- Events Up to 1,000
- Passcode users 100, plus 1 Installer passcode
- Points 96 (8 on-board, up to 88 off-board and virtual)
- Programmable outputs 91 (3 on-board, up to 88 off-board and virtual)
- RF points 88
- Cameras 6
- SKEDs 10
- Current draw (maximum):Idle 125 mA; Alarm 155 mA
- Output (alarm) 1.3 A at 12 VDC
- Output (auxiliary, continuous power, and switched auxiliary combined) 800 mA at 12 VDC nominal
- Voltage (operating): 12 VDC nominal
- Voltage (AC) CX4010 Plug-in Transformer (18 VAC 22 VA 60 Hz) or ICP-TR1822-CAN Plug-in Transformer (110 VAC primary, 18 VAC 22 VA secondary)
Certifications & Standards:
Item Numbers
The Bosch B6512K-C-920 Security Camera is also known as
BOS-B6512KC920
Bosch B6512K-C-920 Security Camera
