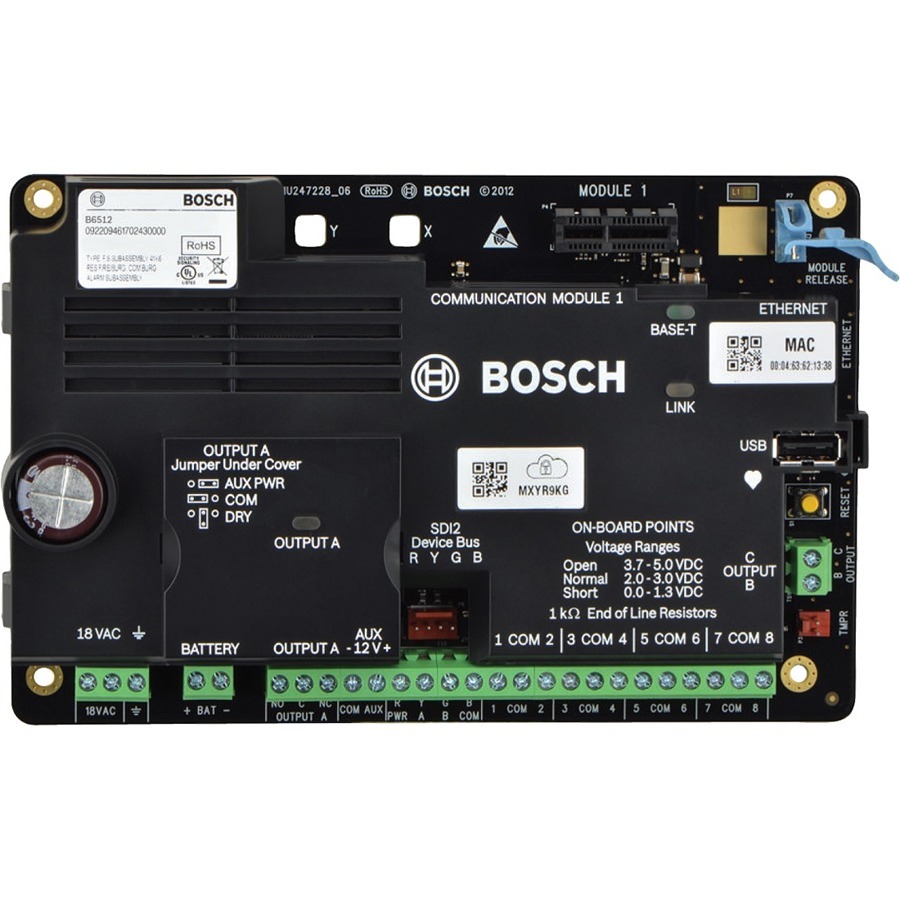

Bosch B6512 Security Camera

Bosch - *PROMO ENDS 3/31* 96 Point Control Com

Provides up to 96 points using a combination of hardwired or wireless devices for installation flexibility and up to 6 areas with perimeter and interior control
On-board Ethernet port for Conettix IP alarm communication and remote programming, compatible with modern IP networks including IPv6/IPv4, Auto-IP, and Universal Plug and Play
Installer-friendly features for simple installation and communications, including on-board USB for easy on-site RPS programming, plus support for Remote Connect Service (not available in Europe, the Middle East, or Africa), and plug-in PSTN and cellular communication modules for simple installation and communications
Remote Security Control (RSC) app which allows users to control their security systems - and view system cameras - remotely from mobile devices such as phones and tablets
Provides up to 4 access doors

Need a different version? See all Bosch Parts Accessories

$399.54

In Stock

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Technical Information

Number of Events Log:

1000

User Code Storage:

101

Features:

Z-Wave

Network & Communication

Sensor Connectivity:

Ethernet:

Yes

Power Description

Input Voltage:

12 V DC

Miscellaneous

Package Contents:

Additional Information:

Ethernet:10/100 full duplex
Relative humidity 5% to 93% at +90? (+32?), non-condensing
Temperature (operating) +32°F to +122°F (0°C to +49°C)
Areas 6
Custom functions 6
Events Up to 1,000
Passcode users 100, plus 1 Installer passcode
Points 96 (8 on-board, up to 88 off-board and virtual)
Programmable outputs 91 (3 on-board, up to 88 off-board and virtual)
RF points 88
Cameras 6
SKEDs 10
Current draw (maximum):Idle 125 mA; Alarm 155 mA
Output (alarm) 1.3 A at 12 VDC
Output (auxiliary, continuous power, and switched auxiliary combined) 800 mA at 12 VDC nominal
Voltage (operating): 12 VDC nominal
Voltage (AC) CX4010 Plug-in Transformer (18 VAC 22 VA 60 Hz) or ICP-TR1822-CAN Plug-in Transformer (110 VAC primary, 18 VAC 22 VA secondary)

Certifications & Standards:

Get help from a Barcoding Expert!

The Bosch B6512 Security Camera is also known as BOS-B6512
