Device Supported:
Control Panel
Bosch B600 Accessory
Part Number:
B600
Model:
Parts
Bosch Accessory Model Overview
Products and parts from Bosch.

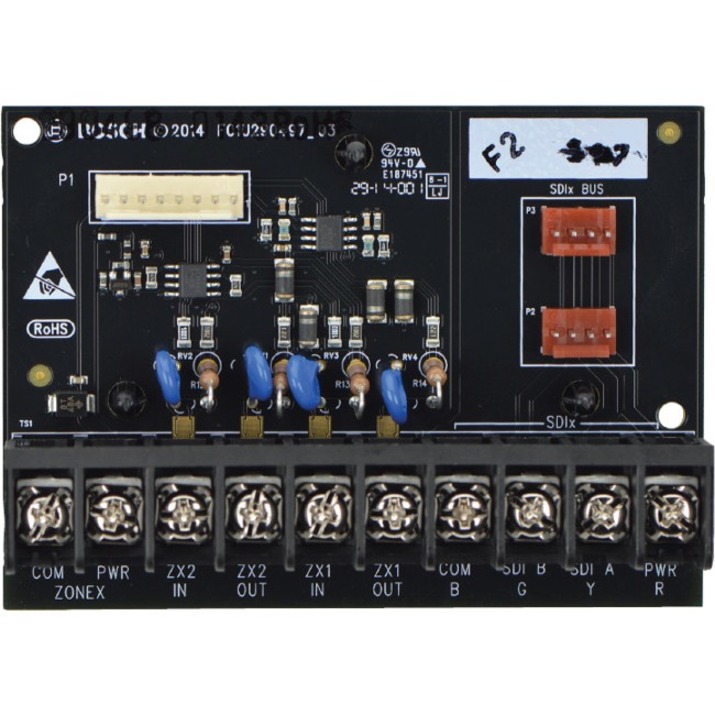

Bosch B600 Accessory Overview
The B600 Retrofit (ZONEX) Module communicates to the control panel through a proprietary connection, and provides support for two ZONEX busses. Connect the B600 module to the control panel through a proprietary connection.
System overview
Each module installs in the control panel enclosure or in an adjacent approved enclosure. Each ZONEX bus supports up to 15 D8128D modules, and/or up to 8 D8129 Octo-relay modules per bus. D8128D and D8129 modules can be combined on a single ZONEX bus. Total number of modules cannot exceed 15 modules.
Using your existing terminal block wiring strip, retrofitting your current ZONEX devices for use on your new control panel is effortless and easy. Simply remove the existing ZONEX terminal strip from your current control panel, and insert onto the B600.
Functions
The B600 Retrofit (ZONEX) Module gives you the flexibility to continue using legacy ZONEX products with either the B9512G or B8512G control panels.
System overview
Each module installs in the control panel enclosure or in an adjacent approved enclosure. Each ZONEX bus supports up to 15 D8128D modules, and/or up to 8 D8129 Octo-relay modules per bus. D8128D and D8129 modules can be combined on a single ZONEX bus. Total number of modules cannot exceed 15 modules.
Using your existing terminal block wiring strip, retrofitting your current ZONEX devices for use on your new control panel is effortless and easy. Simply remove the existing ZONEX terminal strip from your current control panel, and insert onto the B600.
Functions
The B600 Retrofit (ZONEX) Module gives you the flexibility to continue using legacy ZONEX products with either the B9512G or B8512G control panels.
Technical Information
Power Description
Input Voltage:
12 V DC
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Height:
2.8"
Depth:
1"
Width:
3.9"
Weight (Approximate):
10.58 oz
Miscellaneous
Package Contents:
- B600 ZONEX Retrofit Module
- 1 x Hardware Pack
- 1 x Literature Pack
- 1 x ZONEX Connection Cable
Additional Information:
Mounting
Mount the module into the enclosure's 3-hole mounting pattern using the mounting screws and mounting bracket.
Wiring
Use the control panel SDI2 terminals labeled R, Y, G, B (PWR, A, B, COM) when wiring to the module. Connect the control panel terminals to the module terminals labeled R, COM). You can also use the SDI2 interconnect cable.
Mount the module into the enclosure's 3-hole mounting pattern using the mounting screws and mounting bracket.
Wiring
Use the control panel SDI2 terminals labeled R, Y, G, B (PWR, A, B, COM) when wiring to the module. Connect the control panel terminals to the module terminals labeled R, COM). You can also use the SDI2 interconnect cable.
Compatibility:
Bosch Security Systems Control Panels:
- B9512G
- B9512G-E
- B8512G
- B8512G-E
Certifications & Standards:
ULC:
UL:
- [B9512G, B9512G-E, B8512G, B8512G-E, B299, B600, B901, B925F, B926F]
- UL 1023 - Household Burglar Alarm System Units
- UL 1076 - Proprietary Burglar Alarm Units and Systems
- UL 1610 - Central Station Burglar Alarm Units
- UL 365 - Police Station Connected Burglar Alarm Units
- UL 609 - Standard for Local Burglar Alarm Units and Systems
- UL 636 - Holdup Alarm Units and Systems
- UL 864 - Standard for Control Units and Accessories for Fire Alarm Systems
- UL 985 - Household Fire Warning System Units
- UL 294 - Standard for Access Control Units and Systems
- UL 1635 - Standard for Digital Alarm Communicator System Units
FM:
- Central Station
- Local Protective Signaling
- Remote Station
CSFM:
- California State Fire Marshal
FCC:
- Part 15 Class B
ULC:
- [B9512G, B926F]
- CAN/ULC S303 - Local Burglar Alarm Units and Systems
- CAN/ULC S304 - Standard for Signal Receiving Center and Premise Burglar Alarm
- CAN/ULC S545 - Residential Fire Warning System Control Units
- ULC-ORD C1023 - Household Burglar Alarm System Units
- ULC-ORD C1076 - Proprietary Burglar Alarm Units and Systems
- ICES-003 - Information Technology Equipment (ITE)
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Item Numbers
UNSPSC:
46171600
Get help from a Barcoding Expert!
The Bosch B600 Accessory is also known as
BOS-B600
