Device Supported:
Control Panel
Bosch B46 Accessory
Part Number:
B46
Model:
Parts
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch B46 Accessory Overview

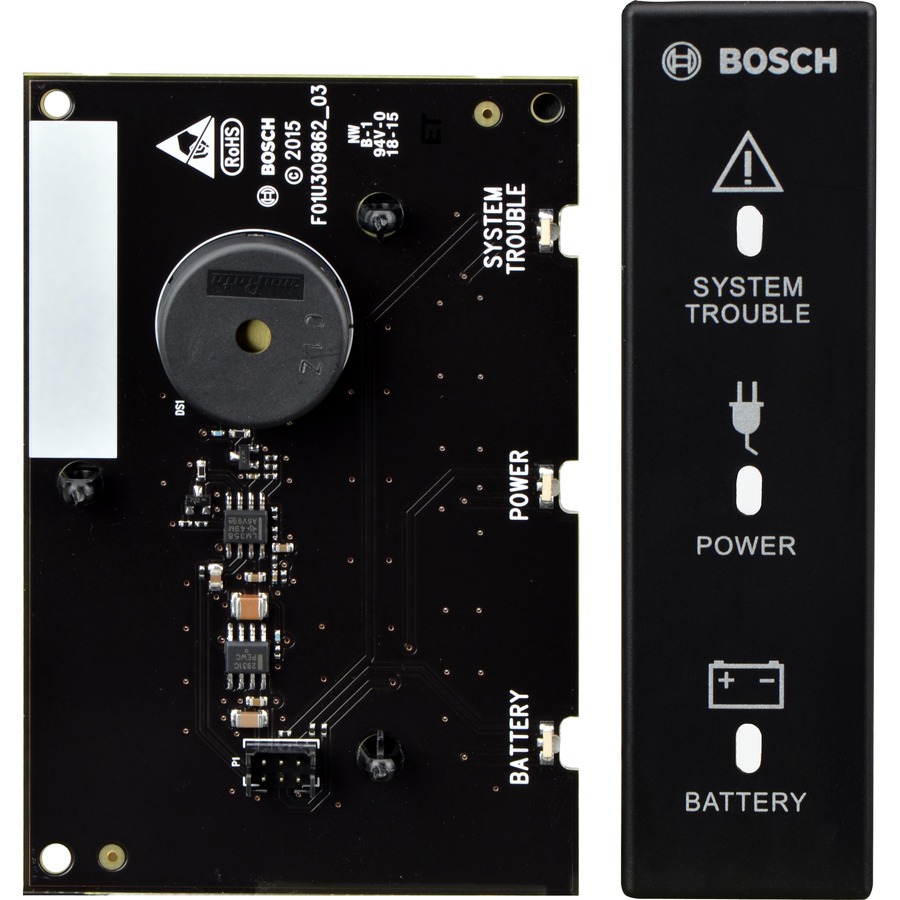

The B46 External Annunciator is an optional module that uses audio and LEDs to show System Trouble, Power, and Battery status through a knockout on select enclosure doors.
System overview
The B46 is an optional module that provides external module LED and sounder status when installed in a supported enclosure. The module has 3 LEDs (System Trouble, Power, and Battery) which illuminate through the B46 LED cover. The LED cover snaps into a knockout in the enclosure door.
System overview
The B46 is an optional module that provides external module LED and sounder status when installed in a supported enclosure. The module has 3 LEDs (System Trouble, Power, and Battery) which illuminate through the B46 LED cover. The LED cover snaps into a knockout in the enclosure door.
Technical Information
Power Description
Input Voltage:
12 V DC
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
120.2°F (49°C)
Physical Characteristics
Product Color:
Black
Height:
5.5"
Width:
4.1"
Depth:
1.7"
Miscellaneous
Package Contents:
- B46 External Annunciator
- 1 x Hardware Pack
- 1 x Literature Pack
- 1 x Enclosure Plate
- 1 x B46 module Cable
Additional Information:
- Provides LED and sounder status for supporting modules
- Easy to install
- Easy to see visibility
- Compact size
Compatibility:
Bosch B465 Conettix Universal Dual Path Communicator Modules
Bosch Enclosures :
Bosch Enclosures :
- B10 Medium Control Panel Enclosure
- B10R Medium Control Panel Enclosure (Red)
- D8103 Universal (requires a B12 mounting plate)
Certifications & Standards:
- UL
- FCC
- CSFM
- FDNY
Country of Origin:
China
Item Numbers
GTIN:
0800549789448, 5691236356655
UPC:
800549789448
EAN:
0800549789448, 5691236356655
UNSPSC:
46171600
Get help from a Barcoding Expert!
The Bosch B46 Accessory is also known as
BOS-B46
