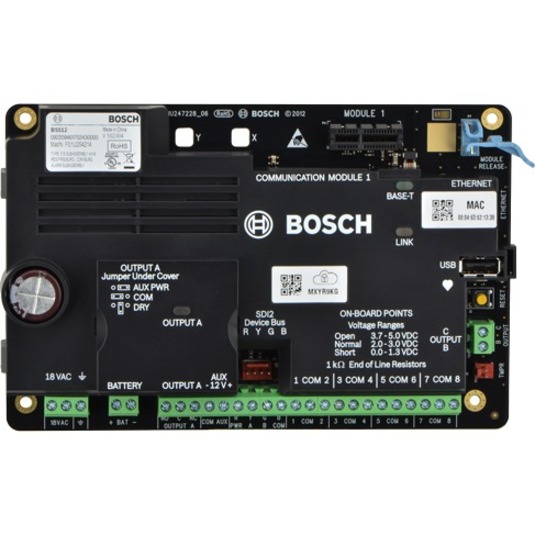

Bosch B4512K-C-920 Access Control Panel

Bosch B Series - Kit with B4512/B10/CX4010/ C920

Supports up to 28 points using a combination of hardwired or wireless points for installation flexibility and 2 areas with perimeter and interior control
On-board Ethernet port for Conettix IP alarm communication and remote programming, compatible with modern IP networks including IPv6/IPv4, Auto-IP, and Universal Plug and Play
Installer-friendly features for simple installation and communications, including on-board USB for easy on-site RPS programming, plus support for Remote Connect Service (not available in Europe, the Middle East, or Africa), and plug-in PSTN and cellular communication modules for simple installation and communications
Remote Security Control (RSC) app which allows users to control their security systems - and view system cameras - remotely from mobile devices such as phones and tablets
Programmable keypad shortcuts, situation sensitive on-screen help, and a bilingual user interface make system operation simple and easy

Need a different version? See all Bosch Parts Accessories

$401.22

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Technical Information

Number of Events Log:

127

User Code Storage:

Network & Communication

Sensor Connectivity:

Ethernet:

Yes

Power Description

Input Voltage:

12 V DC

Miscellaneous

Package Contents:

Additional Information:

Ethernet:10/100 full duplex (N/A for "E" control panels)
Relative humidity 5% to 93% at +90°F (+32°C), non-condensing
Temperature (operating) +32°F to +122°F (0°C to +49°C)
Areas 2
Custom functions 2
Current draw (maximum):Idle 125 mA; Alarm 155 mA
Output (alarm) 1.3 A at 12 VDC
Output (auxiliary, continuous power, and switched auxiliary combined): 800 mA at 12 VDC nominal
Voltage (operating): 12 VDC nominal
Voltage (AC): CX4010 UL Listed Class 2 Transformer 18 VAC 22 VA 60 HZ

Certifications & Standards:

Item Numbers

GTIN: 0800549821827

UPC: 800549821827

EAN: 0800549821827

Questions? Get help from
an ID Expert!

The Bosch B4512K-C-920 Access Control Panel is also known as BOS-B4512KC920
