Number of Events Log:
127
User Code Storage:
11
Bosch B3512K-D-915 Security System Products
Part Number:
B3512K-D-915
Model:
Parts
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Technical Information
Network & Communication
Sensor Connectivity:
- Hardwired
- Wireless
Ethernet:
Yes
Power Description
Input Voltage:
12 V DC
Miscellaneous
Package Contents:

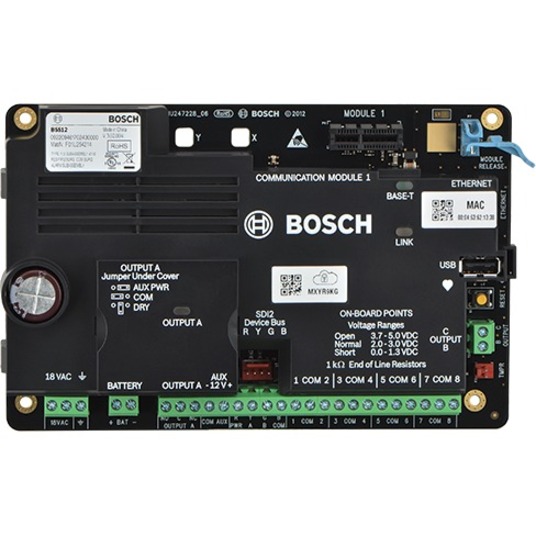

- B3512 IP Control Panel, 16 Points
- Small Enclosure
- B915 Keypad
- 1 x Plug-in Transformer
Additional Information:
- Ethernet:10/100 full duplex (N/A for "E" control panels)
- Relative humidity 5% to 93% at +90°F (+32°C), non-condensing
- Temperature (operating) +32°F to +122°F (0°C to +49°C)
- Areas 1
- Custom functions 1
- Current draw (maximum):Idle 125 mA; Alarm 155 mA
- Output (alarm): 1.3 A at 12 VDC
- Output (auxiliary, continuous power, and switched auxiliary combined): 800 mA at 12 VDC nominal
- Voltage (operating): 12 VDC nominal
- Voltage (AC): CX4010 UL Listed Class 2 Transformer 18 VAC 22 VA 60 HZ
Certifications & Standards:
- ULC
- UL
- CSFM
Item Numbers
GTIN:
0800549821797
UPC:
800549821797
EAN:
0800549821797
Get help from a Barcoding Expert!
The Bosch B3512K-D-915 Security System Products is also known as
BOS-B3512KD915
