Protection Type:
- Surge
- Overload
Bosch ALTV2416ULX3 Products
Part Number:
ALTV2416ULX3
Model:
Accessories
Bosch Accessories Accessory Model Overview
Enhance the operation of your Bosch product with the addition of genuine Bosch Parts.
Bosch ALTV2416ULX3 Products Overview
The Multi-channel Power Supplies are designed to support multiple 24/28 VAC, 50/60 Hz camera installations. These models operate from a 120 VAC, 50/60 Hz or from a 230 VAC, 50 Hz power source.

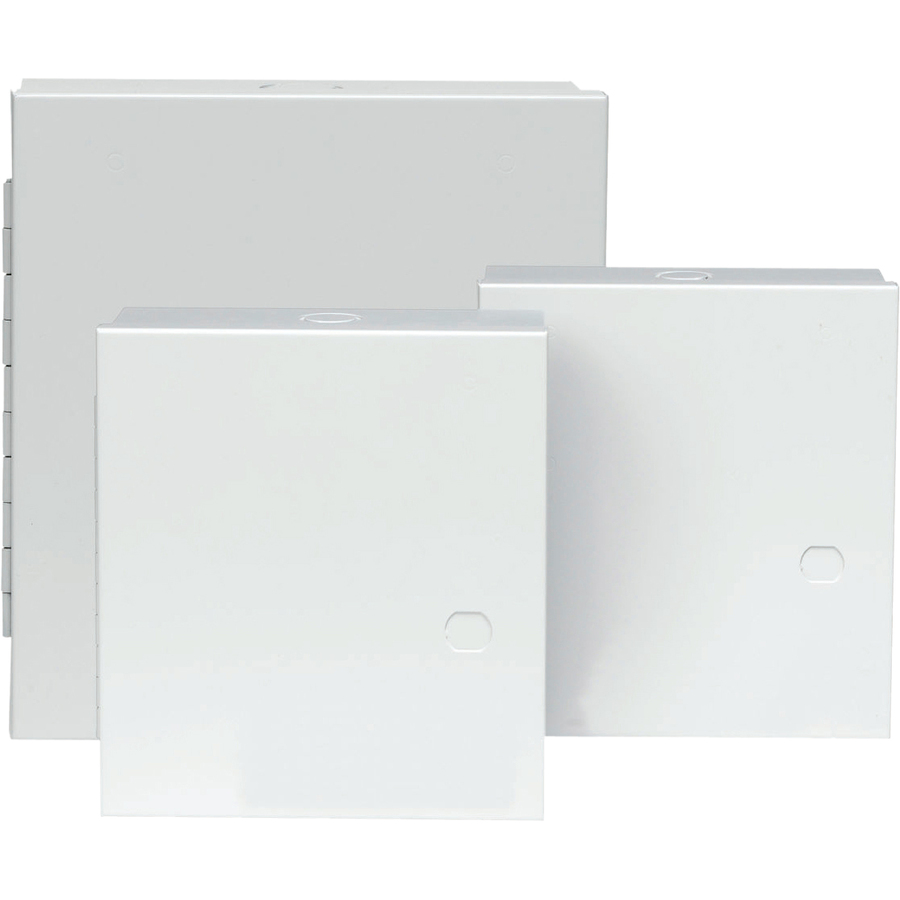

Housed in a steel cabinet, with knockouts included for ease of installation and cable management, all power supplies include channel overload protection and unit surge protection.
Each output can be selected as 24 or 28 VAC. The 28 VAC option is ideal for applications with cameras at the end of long cable runs where significant voltage drops can occur. The ability to select the voltage of each output individually provides a greatly enhanced flexibility to meet the requirements of any installation. These power supplies are ideal for both fixed camera use and for PTZ camera applications.
Housed in a steel cabinet, with knockouts included for ease of installation and cable management, all power supplies include channel overload protection and unit surge protection.
Each output can be selected as 24 or 28 VAC. The 28 VAC option is ideal for applications with cameras at the end of long cable runs where significant voltage drops can occur. The ability to select the voltage of each output individually provides a greatly enhanced flexibility to meet the requirements of any installation. These power supplies are ideal for both fixed camera use and for PTZ camera applications.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 28 V AC
- 24 V AC
Output Voltage Detail:
- 28 V AC @ 6 A
- 24 V AC @ 7 A
Input Current:
900 mA @ 110V
Output Current:
- 6 A
- 7 A
Output Power:
- 168 W
- 144 W
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
13"
Width:
13.5"
Depth:
3.5"
Weight (Approximate):
13.01 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Item Numbers
GTIN:
0782239941575
UPC:
782239941575
EAN:
0782239941575
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Bosch ALTV2416ULX3 Products is also known as
ALT-ALTV2416ULX3
