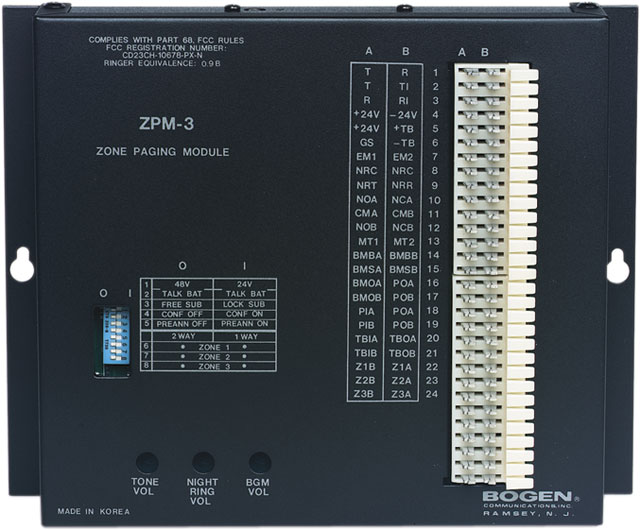

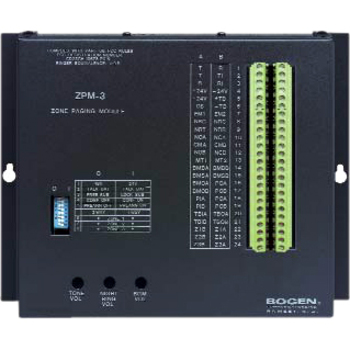

Bogen ZPM-3 3-Zone Paging Module Public Address Equipment Model Overview
The Bogen ZPM3 Zone Paging Module is an advanced solution designed for efficient communication across multiple areas. With the ability to support up to three simultaneous one-way or two-way paging zones, this module enhances your paging system while offering telephone compatibility and talk back capabilities. Ideal for both self-amplified and central-amplified systems, the ZPM3 also integrates background music for unpaged zones, ensuring a versatile and user-friendly operation. Programmable features allow customization for shift changes, emergency calls, and adjustable tone settings, making it an essential tool for efficient zone management in any environment. Key features:
3 Zone paging plus All-Call
Field-programmable paging zone groups with up to 3 zones each
One-way and two-way paging operation
100W total power handling capacity
Background music input with adjustable volume
Built-in night ringer for emergency notifications
Battery backup option for uninterrupted performance
Adjustable volume controls for tones and background music
Specifications:
Operating Voltage: 24V DC
Operating Current (Max.): 350 mA
Audio Power Capability: 100W (70V AC or 25V AC)
Dimensions: 9" W x 7-1/4" H x 1-3/8" D
Shipping Weight: 4 lb.
Operating Temperature: -0° to 125°F
Operating Humidity: 0 to 95% noncondensing
Approval: Registered under Part 68 of FCC rules
Bogen ZPM-3 Public Address Equipment Overview
The Bogen ZPM3 is a telephone-compatible zone paging module with all-call and talk back capabilities serving up to three one- or two-way paging zones. The ZPM3 can also be used in a paging system independent of a telephone system.
The ZPM3 works with self-amplified or central-amplified paging systems. A background music source can be connected directly to the ZPM3, or to a separate amplifier that can be used to supply background music to all unpaged zones.
The Bogen ZPM-3 Public Address Equipment is also known as
BOG-ZPM3
