Bogen WBS86T725V Public Address Equipment Model Overview
The Bogen S86 and S810 cone loudspeakers offer exceptional sound quality combined with effortless installation. These 8-inch speakers are engineered with a high-quality magnetic structure to ensure optimal performance and sensitivity, allowing for a robust audio experience. Designed for versatility, they can easily mount in walls or ceilings, and come in various assembly options, including transformers and volume controls, making them perfect for any commercial or residential audio setup.
Key Features
High Power Handling: Supports 7 watts (S86) or 15 watts (S810) of power for versatile usage.
Easy Installation: Quick attachment provisions for transformers and mounting holes for straightforward setup.
Available Configurations: Factory-assembled options with or without transformers and volume controls.
Durable Construction: Crafted with a ceramic magnet and optimized diaphragm for enhanced audio fidelity.
Specifications
Speaker Model: S86 / S810
Cone Diameter: 8 inches
Magnet Weight: 6 oz. (S86) / 10 oz. (S810)
Voice Coil Impedance: 8 ohms
Frequency Response: 50Hz to 12kHz (S86) / 70Hz to 15kHz (S810)
Axial Sensitivity: 95dB (S86) / 96dB (S810)
Depth: 3-1/4 inches
Shipping Weight: 25 lbs. (S86) / 34 lbs. (S810)
Transformer Options: T725, T72510 compatible
Bogen WBS8T725V Public Address Equipment Overview

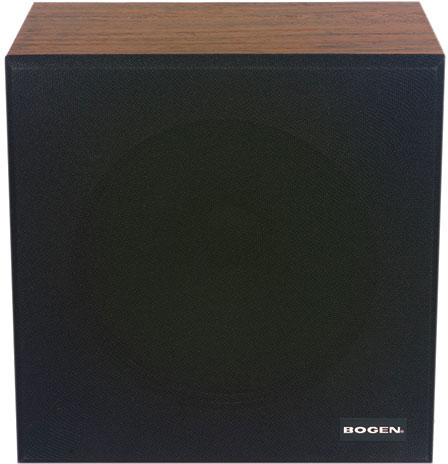

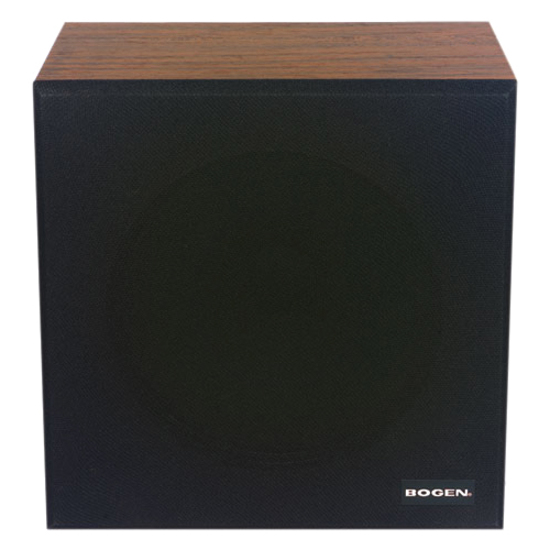

Bogen Wall Baffle Speakers consist of 8" cone speakers (S86 or S810) pre-assembled into a simulated walnut-finished wooden enclosure with a black grille cloth on front.These wall baffles are handsomely styled and ruggedly built with 3/8" particle board reinforced at the corners. Designed for wall mounting, the face is angled downward 13.5 degrees. Available options include recessed volume control and terminal strip.
The Bogen WBS8T725V Public Address Equipment is also known as
BOG-WBS8T725V
