Full specifications (PDF)
Total Harmonic Distortion (THD):
0.1%

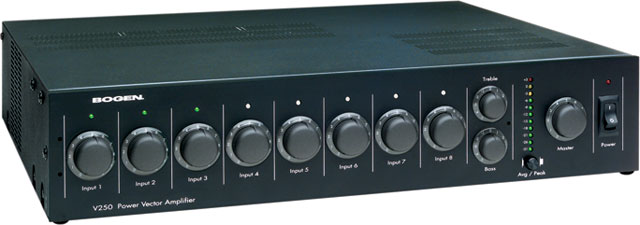

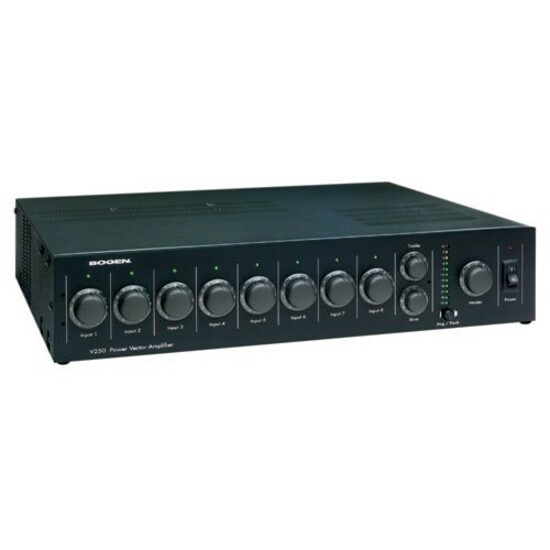

Bogen Power Vector Series Mixer Amplifier Public Address Equipment Model Overview
Bogen's Power Vector Series Mixer Amplifier modular amplifier offers a wide range of power choices, with five models ranging from 35W to 250W. Each model includes eight module bays for plug-in input modules and allows up to four levels of priority between modules. Two module bays are capable of accepting signal processing plug-in output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status.
Bogen V35 Public Address Equipment Overview
Bogen's Power Vector modular amplifier offer a wide range of power 35W. The amplifier is designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems.
It includes eight module bays for plug-in input modules and allows up to four levels of priority between modules. Two module bays are capable of accepting signal processing plug-in output modules. It is controlled by an independent volume control with an associated signal/clip LED for signal status. An 11-segment LED output meter monitors output signal level.
Technical Information
Audio
RMS Output Power:
35 W
Power Description
Input Voltage:
120 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
3.5"
Width:
16.5"
Depth:
12"
Weight (Approximate):
24 lb
Miscellaneous
Additional Information:
Features:
- 11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch
- Master mute function overrides all audio from the mixer section of the amplifier
- Motorized master volume control that can be remotely operated
- Two-color LED for each channel indicates input active/clipping
- 4-ohm, 8-ohm, 25V, & 70V outputs
- Bass and treble controls
Item Numbers
GTIN:
0765368391114
UPC:
765368391114
EAN:
0765368391114
UNSPSC:
52161547
Questions? Get help from a
Printer Expert!
Printer Expert!
The Bogen V35 Public Address Equipment is also known as
BOG-V35
