Full specifications (PDF)
Minimum Frequency Response:
20 Hz

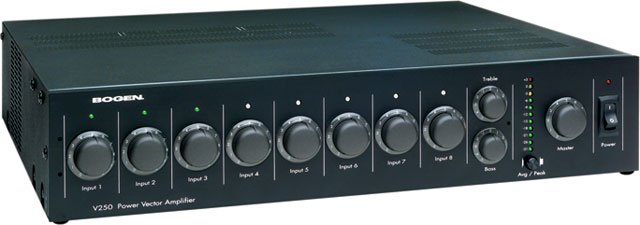

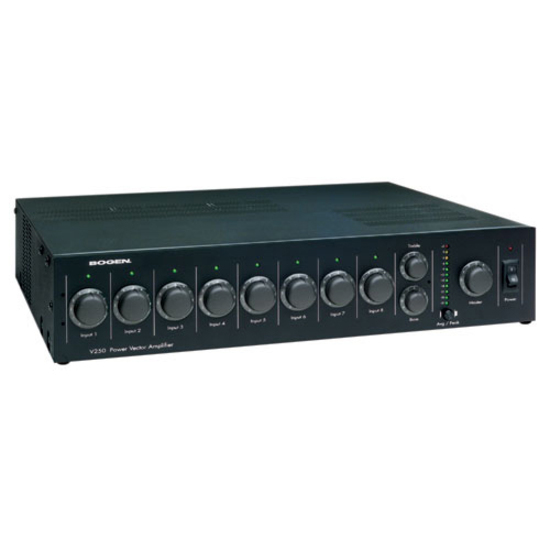

Bogen Power Vector Series Mixer Amplifier Public Address Equipment Model Overview
Bogen's Power Vector Series Mixer Amplifier modular amplifier offers a wide range of power choices, with five models ranging from 35W to 250W. Each model includes eight module bays for plug-in input modules and allows up to four levels of priority between modules. Two module bays are capable of accepting signal processing plug-in output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status.
Bogen V150 Public Address Equipment Overview
Bogen's Power Vector modular amplifiers offer a wide range of power levels. The amplifiers are designed to work with both high (70/25V) and low (4/8-ohm) impedance speaker systems. V150 Power Amplifier includes eight module bays for plug-in input modules and allows up to four levels of priority between modules. Two module bays are capable of accepting plug-in signal-processing output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status. An 11-segment LED output meter monitors output signal level.
Technical Information
Audio
RMS Output Power:
200 W
Interfaces/Ports
Number of Analog Audio Inputs:
2
Power Description
Input Voltage:
110 V AC
Frequency:
60 Hz
Physical Characteristics
Product Color:
Black
Height:
3.5"
Width:
16.5"
Depth:
12"
Weight (Approximate):
35 lb
Miscellaneous
Additional Information:
- Lockable switch permits user to select either transformer coupled outputs or a direct low-impedance output
- Bridging jack and Mute terminals join multiple Power Vector amps and mixers together
- Independent volume control for each of the eight module bays
- Motorized master volume control can be remotely operated
- External access to priority mute buses
- Bridging In/Out connector
Certifications & Standards:
- C-UL
- UL
Item Numbers
GTIN:
0765368391145
UPC:
765368391145
EAN:
0765368391145
UNSPSC:
52161547
Questions? Get help from a
Printer Expert!
Printer Expert!
The Bogen V150 Public Address Equipment is also known as
BOG-V150
