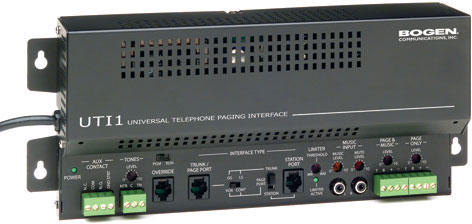

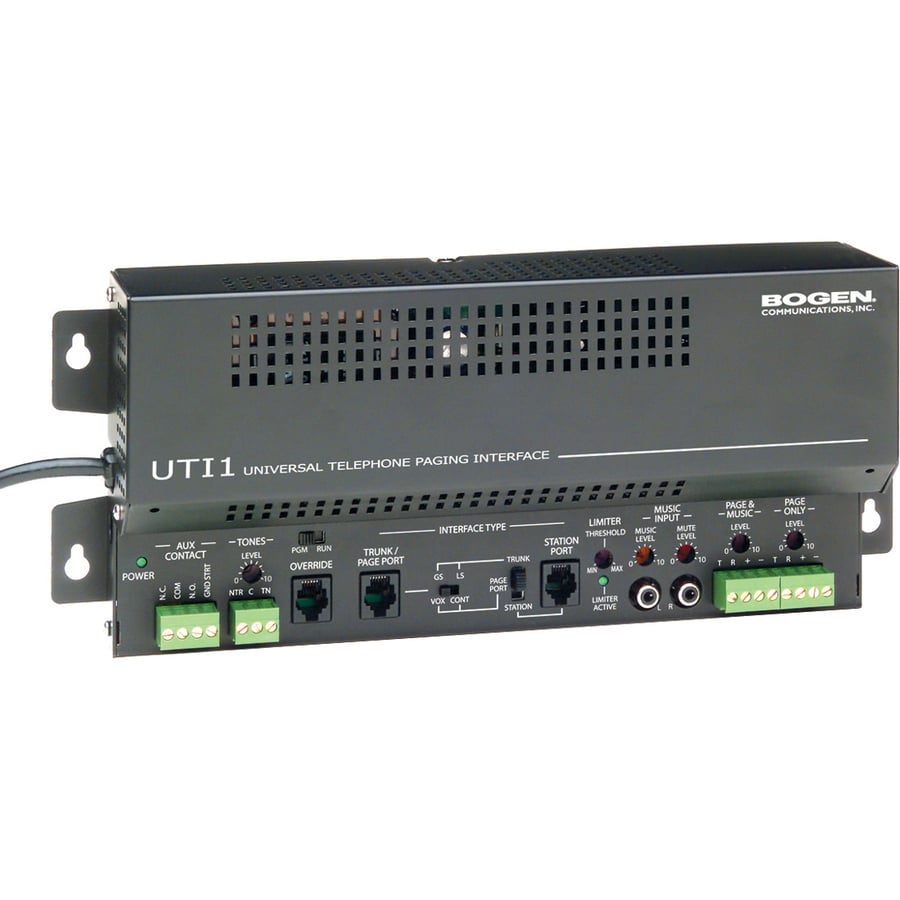

Bogen UTI1 Public Address Equipment Model Overview
The UTI1 Universal Telephone Interface is designed for efficient single-zone paging in one-way audio applications, making it ideal for environments that utilize self-amplified speaker systems. This versatile system is compatible with all standard analog port types and features two audio outputs with level controls, capable of supporting up to 150 Bogen self-amplified speakers each. The UTI1 also includes an intuitive setup design, programmable timers for page duration, and a range of activation features, ensuring seamless integration and ease of use for any communication setup. Key features:
Single-zone paging for self-amplified speaker systems
Compatible with all standard analog port types
Two audio outputs with individual level controls
Programmable timers to control page duration
High impedance transformer-isolated music input with volume control
Specifications:
Input Impedance: 600 ohms (nominal)
Output Level: -10 dBm (nominal)
Temperature: 0 to 104° F (-18 to 40° C)
Humidity: 0 to 85% non-precipitating
DC Output: 1A @ 24V DC
Speaker Drive Capacity: 150 speakers
Dimensions: 12-14"W x 5-1/4" H x 2-1/2" D
Product Weight: 5 lb.
Bogen UTI1 Public Address Equipment Overview
The UTI1 Universal Telephone Interface provides single-zone paging for one-way applications such as self-amplified speaker systems. It is compatible with all standard analog port types and includes two audio outputs with level controls, each of which can provide audio for 150 Bogen self-amplified speakers.
The Bogen UTI1 Public Address Equipment is also known as
BOG-UTI1
