Full specifications (PDF)
Product Material:
Steel
Bogen TG4C Public Address Equipment
Part Number:
TG4C
Model:
TG4C
Bogen TG4C Public Address Equipment Model Overview
The Bogen® Model TG4C Multiple Tone Generator is a versatile audio solution designed to produce four unique signals: pulsed tone, slow whoop, repeating chime, and steady tone. With customizable settings for tone level and pitch, this generator accommodates various applications, including alarm signaling and pre-announcement messaging. Powered by a 12-48V DC source, the TG4C easily integrates with external devices for seamless operation. Its compact design and user-friendly controls make it an ideal choice for facilities requiring effective audio communication.
Key Features
Specifications
Key Features
- Multiple Signal Options: Generates pulsed tone, and steady tone.
- Adjustable Tone Level and Pitch: Customize audio output for specific applications.
- External Triggering: Easily connects to external devices for alarm signaling or announcements.
- Wide Power Range: Operates on 12-48V DC with flexible grounding options.
- Easy Installation: Screw terminal connections simplify setup.
Specifications
- Power Supply: 12-48V DC, positive or negative ground
- Input Signal: Accepts high-level (max. 1.5V RMS) from program sources
- Signal Precedence: Built-in precedence for tone signal over program input
- Dimensions: Compact design for easy integration
- Operating Temperature: Suitable for various environments
Bogen TG4C Public Address Equipment Overview

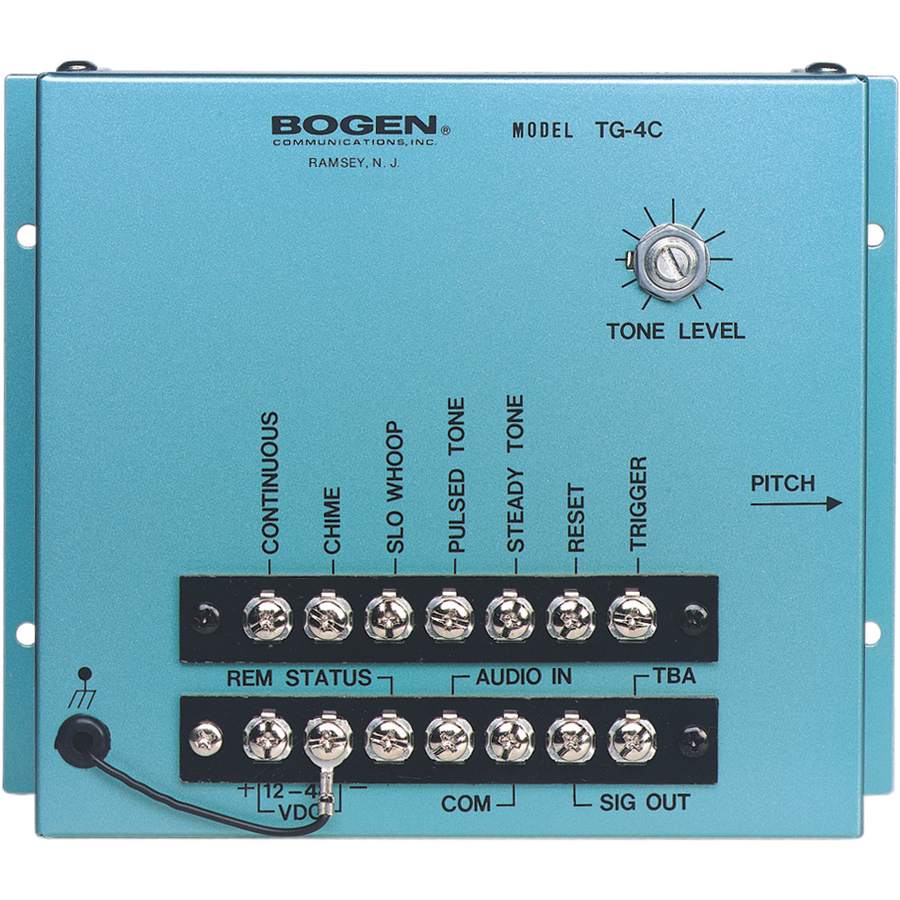

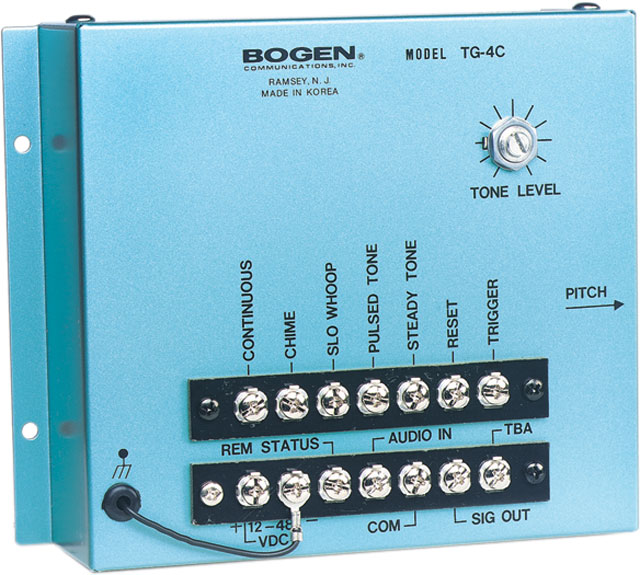

The Model TG4C Multiple Tone Generator is a compact, reliable unit designed to generate four distinct signals: pulsed tone; slow whoop; repeating chime; and steady tone.
It is an excellent source for alarm or pre-announce signals in public address or telephone paging systems. The TG4C will accept a Hi-Z input from a program source, such as a tuner, turntable, CD player, etc., and will maintain precedence over the program material for the duration of the contact closure.
Physical Characteristics
Miscellaneous
Additional Information:
- 4 types of tones: steady, pulsed alarm, slow whoop, and chime
- Tones triggered by external contact closure
- Choice of continuous or two-burst tone
- Tone generation reset available
- Adjustable tone level and pitch
- Operates on 12 - 48V DC, positive or negative ground
Item Numbers
GTIN:
0616174242384, 0696551767228, 0765368200652, 0994141015873
UPC:
616174242384, 696551767228, 765368200652, 994141015873
EAN:
0616174242384, 0696551767228, 0765368200652, 0994141015873
UNSPSC:
46171600
