Bogen TAMB Public Address Equipment Model Overview

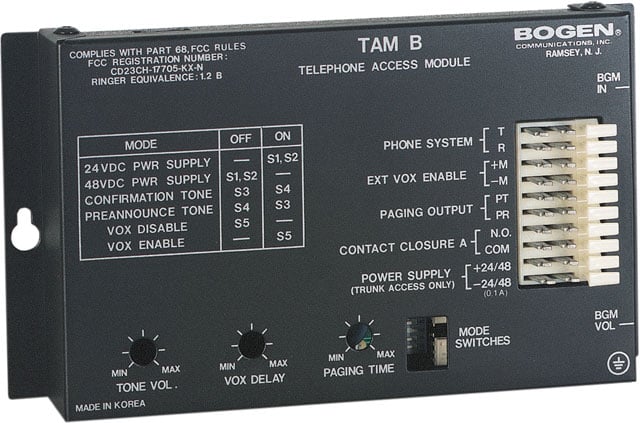

The Bogen TAMB Telephone Access Module is an innovative dual-purpose voice paging adapter designed to seamlessly connect any telephone system to a paging system. With its ability to operate in both station and trunk port configurations, this module ensures compatibility with a wide array of telephone systems. Its advanced design and robust functionality make it ideal for both simple and complex paging applications. Additionally, the background music input feature allows for a pleasant auditory experience alongside paging announcements, making it a versatile addition to any communication setup. Key features:
Compatible with loop start, ground start, and station port operations
Adjustable tone volume and pre-announce confirmation tones
Supports one-way and two-way zones
Background music input with volume control
Dynamic station access disconnect management
Wall-mountable with easy-access controls
Specifications:
Ringer Equivalence: 1.2B
Station Port Compatibility: Two-wire ring start
Trunk Port Compatibility: Two-wire loop start or ground start
Input/Output Impedance: 600-ohms, nominal
Power Requirements: 24V DC @ 90 mA or 48V DC @ 105 mA
Operating Temperature Range: 32° - 120°F
Dimensions: 8-1/8" W x 4-1/2" H x 1-7/8" D
Shipping Weight: 2 lb.
Bogen TAMB2 Public Address Equipment Overview
The Bogen TAMB2 Telephone Access Module is a unique, dual-purpose voice paging adapter designed as an interface from a telephone system to a paging system.
This versatile unit offers the capability of station port or trunk port operation, and is compatible with the full range of analog telephone port types. Advanced design and Bogen dependability make the TAMB2 the perfect choice for simple or complex telephone paging applications.
A background music input (with stereo-combining RCA jacks and volume control), which will accept a line-level input from a background music source, is provided. This input permits the use of background music during a page with central paging amplifiers that have no muting provision.
The Bogen TAMB2 Public Address Equipment is also known as
BOG-TAMB2
