Bogen SPT5A Public Address Equipment

Bogen SPT5A - Bogen SPT5A Magaphone - 7.50 W Amplifier - Built-in Amplifier
$63.88
Add to Quote
Bogen SPT5A Public Address Equipment Model Overview

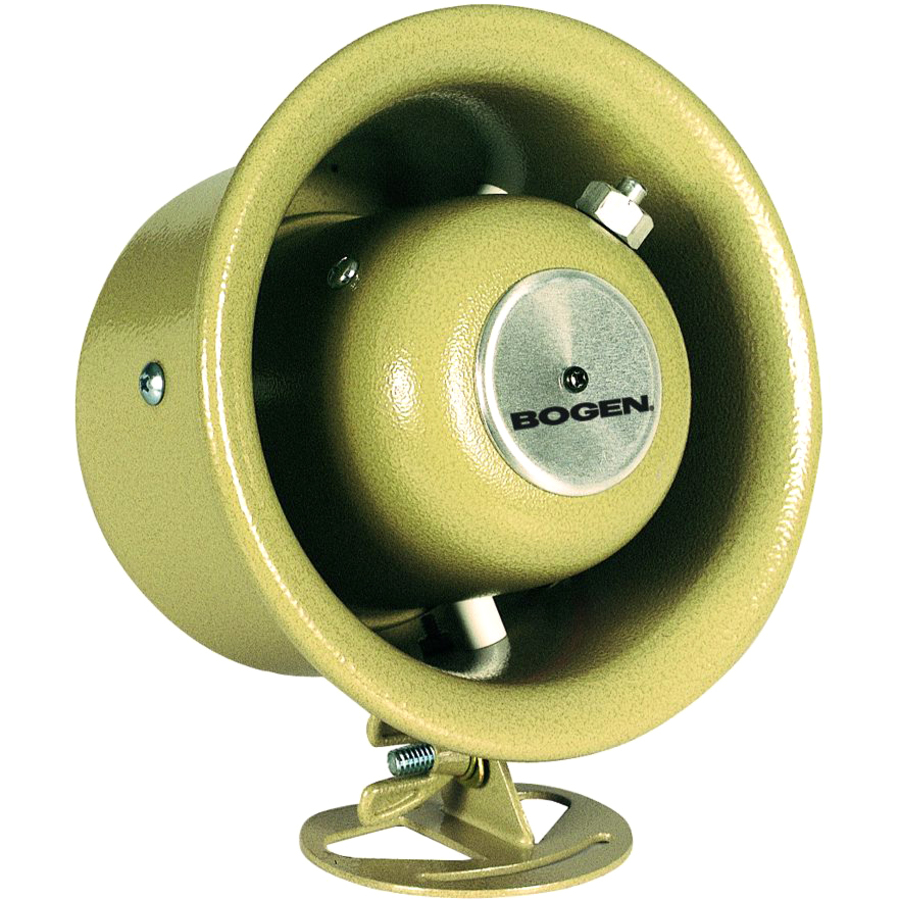

Bogen's SPT5A Horn Loudspeaker is designed to work as one-way or two-way sound and communication system. Its wide frequency response ensures excellent full-range background music reproduction. The built-in variable impedance selector switch helps for matching speaker power requirements to a 25V/70V constant voltage line. With weatherproof, all-metal construction, textured mocha enamel finish and all-purpose mounting bracket for precise positioning, these loudspeakers are an excellent choice for multi-purpose applications, indoor or outdoor, for use in industrial plants, warehouses, schools, construction sites, transportation terminals and recreational areas.
Bogen SPT5A Public Address Equipment Overview

The Bogen SPT5A and SP58A are compact, reflex horn-type loudspeakers, designed for one-way or two-way sound and communications systems.Their wide frequency response assures full-range background music reproduction, making these loudspeakers an excellent choice for multi-purpose applications, indoor or outdoor, for use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas.

The SPT5A has a built-in, variable impedance selector switch for matching the speaker power requirements to a 25V or 70V constant-voltage line.The SP58A has an 8-ohm impedance.

The loudspeakers measure 6" in diameter and 4" deep. Connections are made through a 12" connecting cable.

Technical Information
Built-in Amplifier:
Yes
Amplifier Power Output:
7.50 W
Physical Characteristics
Weight (Approximate):
2 lb
Miscellaneous
Durability:
Weather Proof
Additional Information:
  • Passive loudspeaker
  • Ideal for both one-way and two-way applications
  • Frequency Response: 250Hz to 14kHz
  • Dispersion: 120º
  • Sensitivity as Microphone: -22dBm [Ref: 10 dynes/cm2]
  • Dimensions: 6" Dia. x 4" D

Impedance Selector Switch Settings:

  • 25V @ 1, 0.62, 0.31 watts
  • 70V @ 7.5, 5, 2.5, 1.25, 0.65 watts
Item Numbers
GTIN: 0696551905279, 0818254878982, 0999555102300, 0999992817782
UPC: 818254878982, 993246289363, 997849478124, 999555102300, 999992817782
EAN: 0696551905279, 0818254878982, 0999555102300, 0999992817782
UNSPSC: 52161533
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Bogen SPT5A Public Address Equipment is also known as BOG-SPT5A
