Bogen SPT15A Public Address Equipment Model Overview

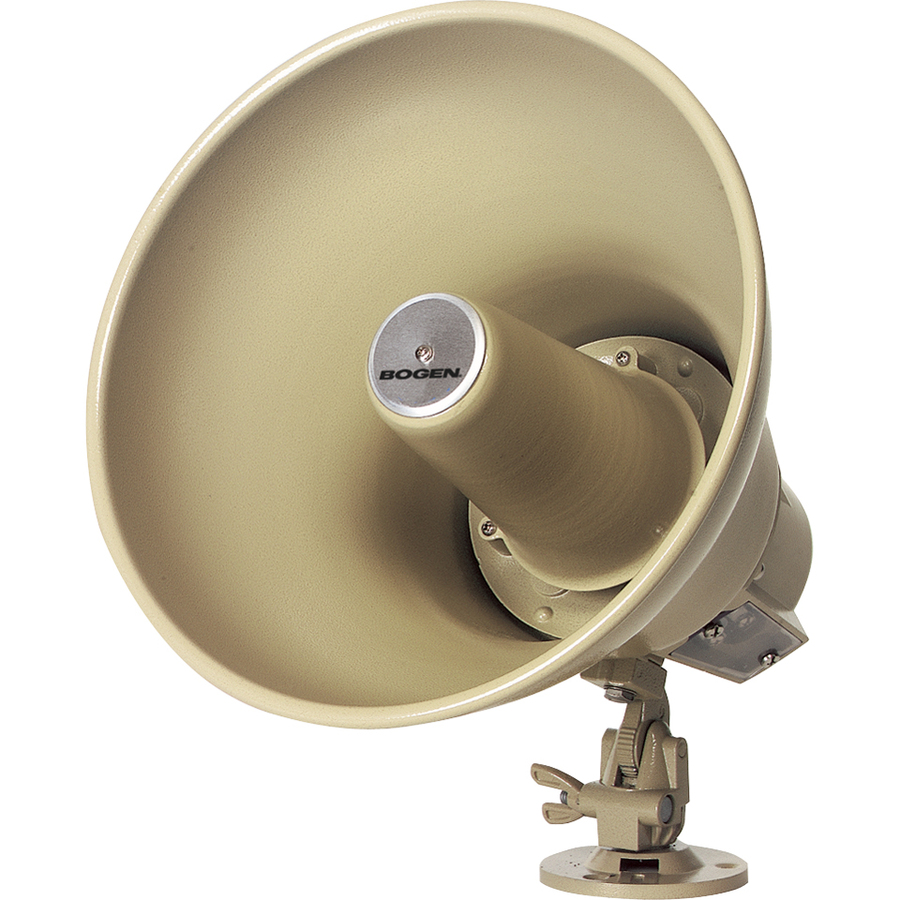

The Bogen SPT15A and SP158A Reentrant Horn Loudspeakers are expertly designed for both one-way and talk-back communication systems. With their high intelligibility and efficiency, these compact speakers excel in demanding environments such as industrial plants, warehouses, and outdoor recreational areas. With a robust weatherproof construction and user-friendly installation features, the SPT15A offers a variable impedance selector for customized power matching, while the SP158A operates with an 8-ohm impedance. These loudspeakers not only promise durability but also deliver exceptional sound quality, making them an ideal choice for your audio needs.
Key Features
High intelligibility and efficiency for superior sound clarity.
Weatherproof, all metal construction ensures durability in all environments.
15 watts power rating, with options for 25/70 volt or 8-ohm operation.
Variable-tap impedance selector on SPT15A for flexible usage.
Compact design (9" diameter, 9-1/4" deep) for easy installation.
Specifications
Power Rating: 15 watts continuous, 20 watts equalized
Frequency Response: 275Hz to 14kHz
Impedance:
SPT15A: 25V @ 15, 7.5, 1.8, .94, .46 watts
SPT15A: 70V @ 15, 3.8, .9 watts
SP158A: 8 ohms
Sound Pressure Level: 121dB @ four feet on axis with 15 watt input @ 1000Hz
The Bogen SPT15A and SP158A are compact, high intelligibility, reentrant type loudspeakers, designed for one way or two way sound and communication systems. Their sturdy, weatherproof, all metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas. Screw terminals make installation fast and easy.

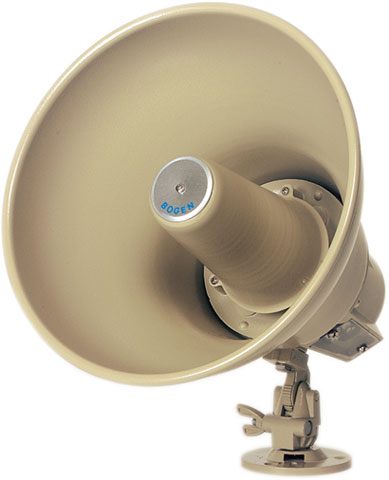

The Bogen SP158A Public Address Equipment is also known as
BOG-SP158A
