Full specifications (PDF)
Number Of Devices Controlled:
150
Bogen SLC Public Address Equipment
Part Number:
SLC
Model:
BUFEX
Bogen BUFEX Public Address Equipment Model Overview
The BUFEX is your ultimate solution for remotely controlling the volume of multiple speakers in a network. This continuously variable speaker attenuator supports up to 150 self-amplified speaker inputs and facilitates system expansion for 100V, 70V, or 25V central amplifier systems. With a crucial bypass function, emergency announcements can be heard regardless of the volume control setting, ensuring critical communication is always prioritized. Constructed with a sleek stainless steel plate and designed to fit into a standard electrical box, the BUFEX is both functional and aesthetically pleasing.
Key Features
- Continuously variable attenuator for flexible volume control
- Supports up to 150 self-amplified speaker inputs
- Compatible with 100V, and 25V systems
- Bypass trim control for adjusting emergency announcement levels
- Rugged stainless steel construction with engraved lettering
- Two-Year Warranty for peace of mind
Specifications
- Supply Voltage: 24V DC
- Current Consumption: 1 CU (50 mA)
- Output Impedance: 8 ohms
- Volume Control Range: 0 to -50 dB
- Bypass Trip Current: 0.8 mA
- Bypass Voltage: 10V
- Dimensions: 2-13/16" W x 4-5/16" H x 2-3/8" D
- Product Weight: 3 oz.
Bogen SLC Public Address Equipment Overview

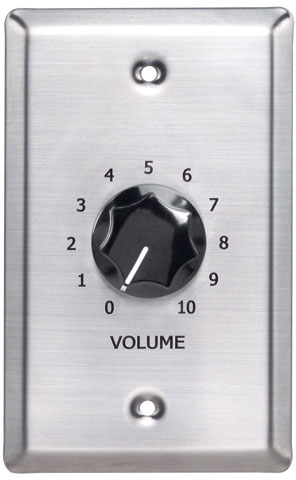

The Bogen SLC is a continuously variable volume control that can remotely control the volume of up to 150 self-amplified speakers. The SLC fits into a single gang electrical box. The controller is a continuously variable passive volume control that can remotely control the volume of up to 150 self-amplified speakers. The unit's output terminals are able to control up to 150 speaker inputs. Output wiring is made via two separate two-position screw terminal blocks for input and output signals. The SLC?has a rugged and attractive stainless steel plate with engraved lettering. The SLC measures 2-7/8" W x 4-5/8" H x 2" D and weighs 2 oz.
- Remotely control the volume of up to 150 self-amplified speakers
- Rugged and attractive stainless steel plate with engraved lettering
- Mounts in a single gang electrical box
- Easy and secure terminal strip connections
- Passive (requires no DC?power)
Technical Information
Physical Characteristics
Product Material:
Stainless Steel
Form Factor:
Gang Box Mount
Height:
4.6"
Width:
2.9"
Depth:
2"
Weight (Approximate):
2 oz
Miscellaneous
Package Contents:
- Signal Level Controller
- 1 x Installation and Use Manual
- 2 x Faceplate Screws
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0765368450927, 0818214138477, 0818240881385, 0999560648794
UPC:
765368450927, 818214138477, 818240881385, 999560648794
EAN:
0765368450927, 0818214138477, 0818240881385, 0999560648794
UNSPSC:
39121552
