The Bogen S86 and S810 loudspeakers deliver exceptional sound clarity and robust performance, making them ideal for commercial settings. With an 8" cone-type design and various transformer options, these speakers easily adapt to both wall and ceiling installations. The magnetic structures of the S86 and S810 ensure maximum air gap energy while providing high sensitivity and an optimized frequency response. Enjoy the convenience of factory-assembled versions that simplify installation, allowing for swift integration into your audio systems, ensuring trouble-free operation and outstanding sound quality.
Key features:
High-quality sound: 8" cone design with exceptional sensitivity.
Power Options: Available in 7 watts (S86) and 15 watts (S810) power handling capacities.
Easy Installation: Quick attachment provision for transformers and factory-assembled options.
Versatile Accessories: Multiple optional configurations with volume control and terminal strip.
Specifications:
Speaker Model: S86, S810
Cone Diameter: 8"
Magnet Material: Ceramic
Voice Coil Impedance: 8 ohms
Frequency Response: 50Hz to 12kHz (S86), 70Hz to 15kHz (S810)
Axial Sensitivity: 95dB (S86), 96dB (S810)
Shipping Weight: 25 lbs (S86), 34 lbs (S810)
Depth: 3-1/4"
Bogen S86T725PG8W Public Address Equipment Overview

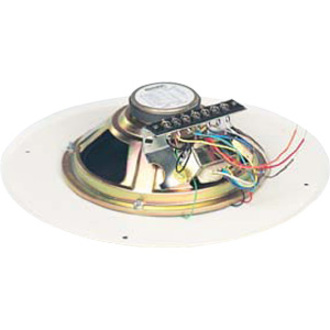

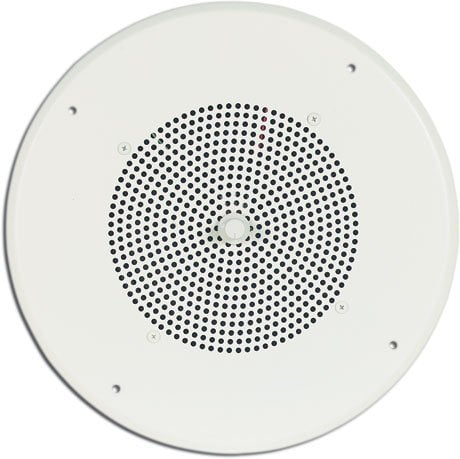

Bogen's Ceiling Speaker Assemblies consist of an 8" Cone Speaker (S86 or S810) pre-assembled onto a 13" steel ceiling grille painted with off-white (PG8W) or bright white (PG8U) enamel. Options for these assemblies are recessed volume control (VR), volume control with knob (VK), and rear-mounted screw terminal strip for power taps (BR).
The Bogen S86T725PG8W Public Address Equipment is also known as
BOG-S86T725PG8W
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
