Form Factor:
Wall Mountable
Bogen PCMSYS3 Public Address Equipment
Part Number:
PCMSYS3
Model:
DCM290P

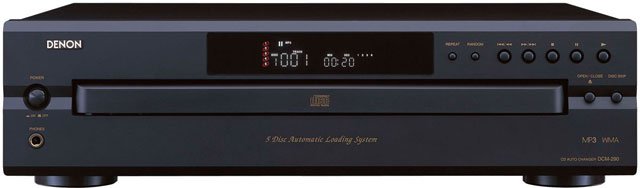

Bogen DCM290P Public Address Equipment Model Overview
The Bogen DCM-290P CD changer features stereo output via analog RCA jacks and digital output via coaxial and optical jacks. Program up to 32 tracks from up to five separate discs, plus the DCM290P CD Changer can play MP3 and WMA files.

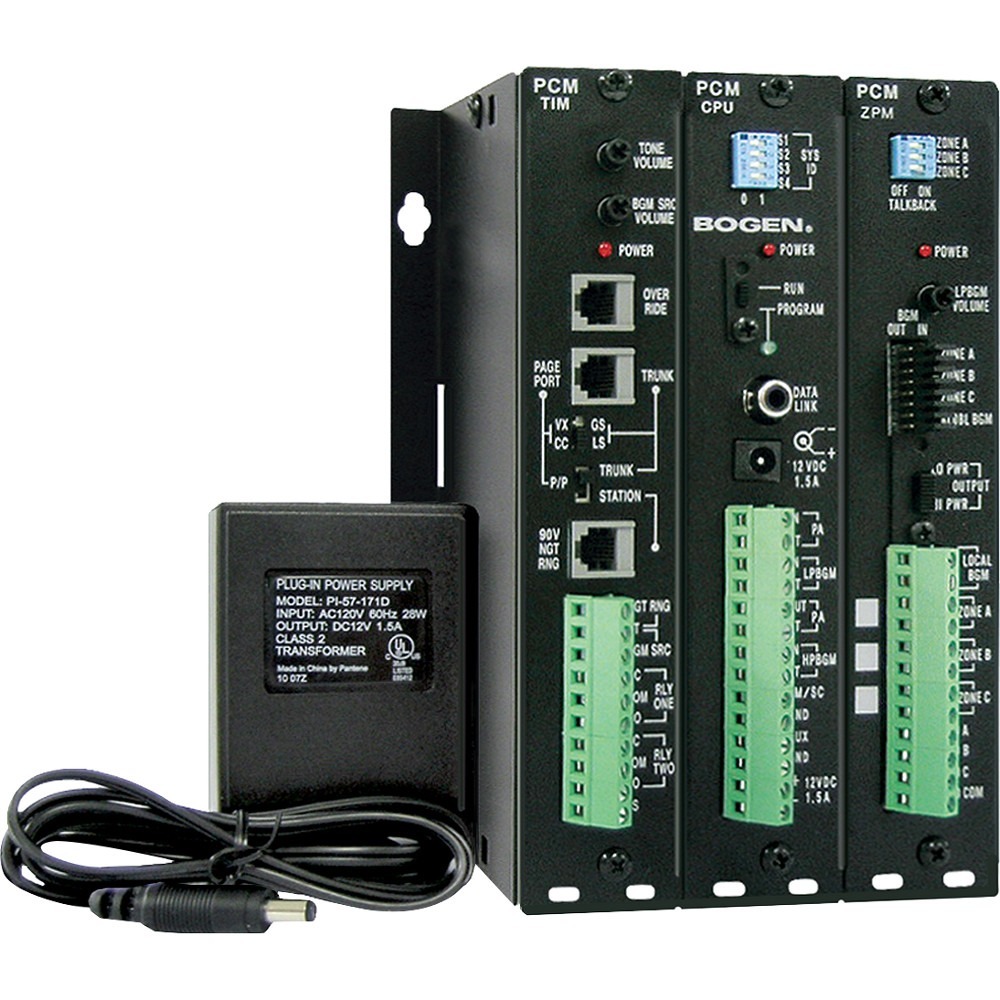

Bogen PCMSYS3 Public Address Equipment Overview
The PCMSYS3 is a pre-assembled and tested 3-zone PCM2000 system with a PCMPS2 power supply. Use it right out of the box for 1 to 3 zone applications or expand it with other PCM modules. Provides all the same great features found in the PCM2000 zone paging system.
Physical Characteristics
Miscellaneous
Package Contents:
- 1 x PCMTIM Telephone Interface Module
- 1 x PCMCPU Central Processor Module
- 1 x PCMZPM 3-Zone Paging Module
- 1 x PCMPS2 System Power Supply
Additional Information:
- Provides 1 to 3 paging zones
- Expandable up to 99 zones*
- Up to 32 programmable paging zone groups
- Emergency All-Zone Override Paging input
- Two-way Communications*
- 250W power handling capacity
- Code Calling
- Background Music distribution
- Works with systems that are central- or self-amplified
- Drives up to 40 self-amplified speakers per zone module
- Night Ringer, 90V and contact closure
- Real-time Clock & Master Clock Synchronization*
- Time Triggered Signaling Tones
- Operates with 70V and self-amplified (24V) paging systems
- Universal Telephone Interface allows simple connection to loop and ground start trunks, paging ports, and to analog 90V station lines
- RJ11 jacks & terminal blocks
- Relay driver outputs
- Two C-form relay contacts
- Setup tone
- Program system features via DTMF
Application/Usage:
- Telephone
- Paging System
Item Numbers
GTIN:
0765368201048
UPC:
765368201048
EAN:
0765368201048
UNSPSC:
39121900
