Bogen OCS1 Public Address Equipment

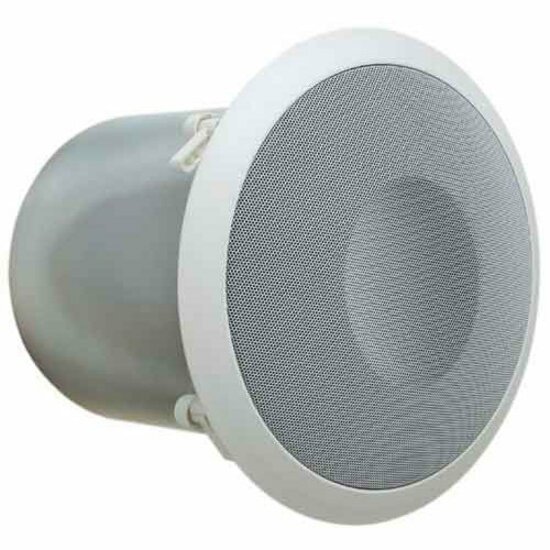

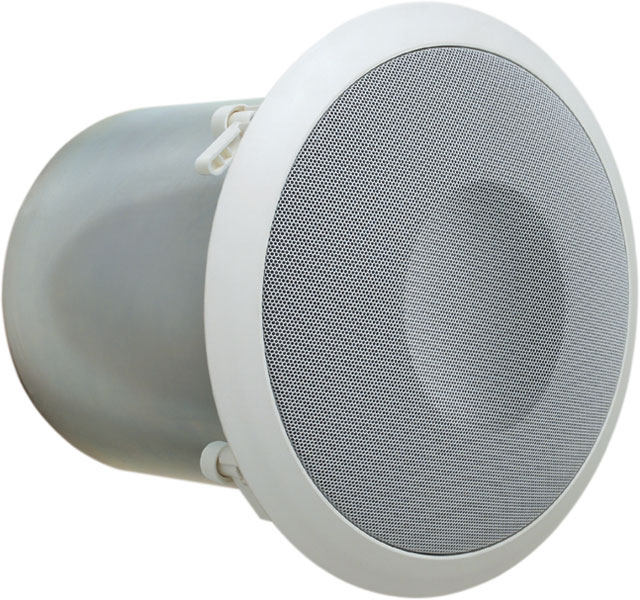

The N.E.A.R. Orbit Ceiling Speaker Model OCS1 is expertly designed to blend seamlessly into various ceiling environments, delivering exceptional sound quality and reliability. Featuring NEAR’s innovative MLSTM and MDT™ technologies, this ceiling speaker ensures low distortion and outstanding articulation, making it ideal for both music and speech applications. Its robust design allows for easy installation on hard-surface ceilings or suspended ceilings with an optional TBCR bracket, making it a versatile option for various settings.

• Wide-dispersion coaxial driver for broad, even coverage.
• High-efficiency drivers delivering superior performance.
• Easy wiring with snap-on connector providing loop-through capability.
• Selectable power taps via front-mounted control for versatile usage.
• Durable construction with a low-resonance cabinet structure.
• White textured finish can be painted to match decor themes.

• Frequency Response: 60 Hz to 19 kHz
• LF Driver: 6-1/2" MDT Metal-Alloy Cone
• HF Driver: 20 mm (3/4") Polycarbonate Dome
• Sensitivity: 89.5 dBspl (Average 100 Hz - 10 kHz)
• Impedance Ratings: Low (16 ohms) / High (70V/100V)
• Power Input (Max.): 100W @ 16 ohms; 32W @ 70V/100V
• Baffle Material: Fire-rated (94VO) ABS
• Product Weight: 10 lb.
• Speaker Dimensions: 12-5/16" dia. x 12" D
• Included Accessories: Input Terminal Cover, Screws, Snap-Lock Input Connector
• Optional Accessories: Tile Bridge Support Ring (Model TBCR), Cable Kit (Model CK10)
